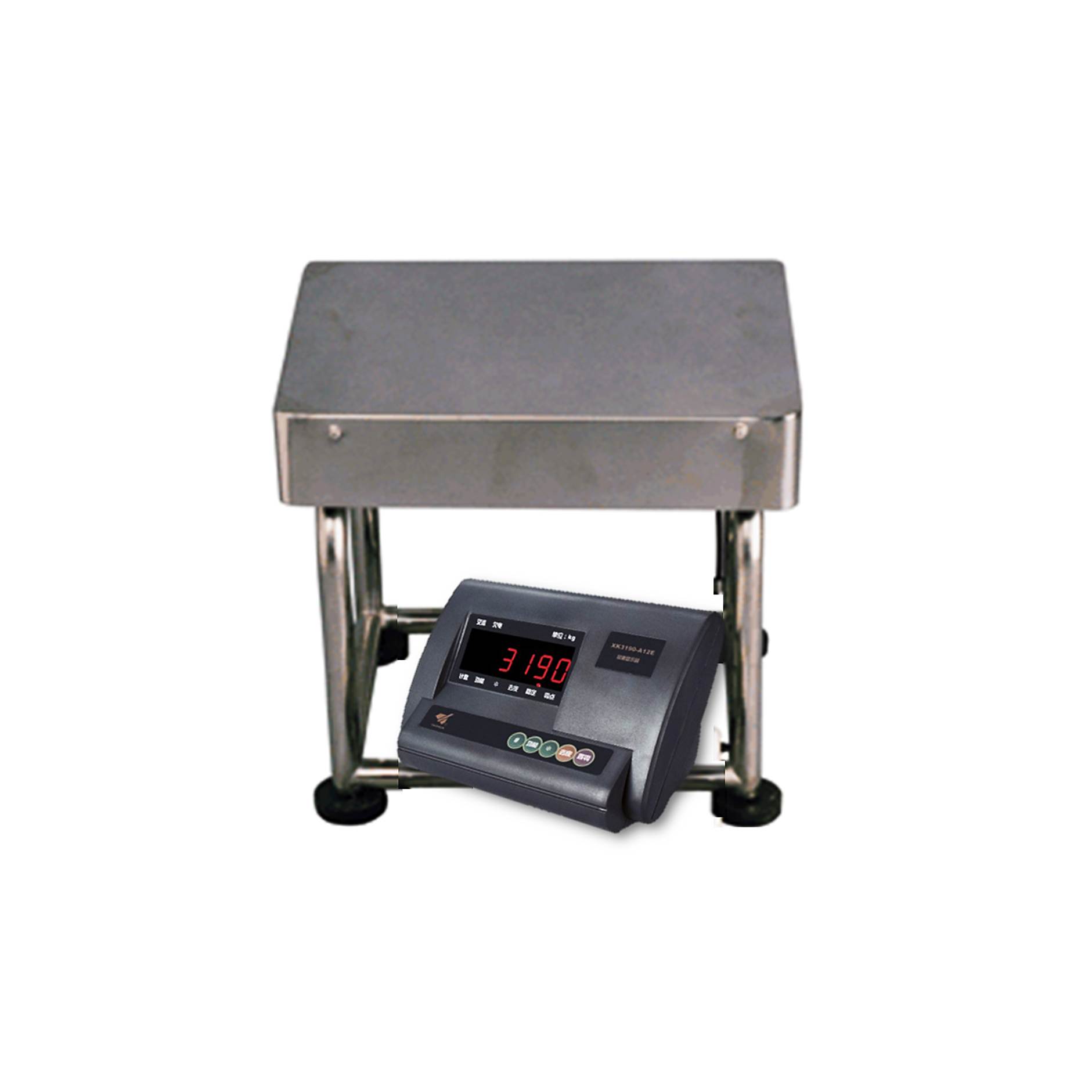

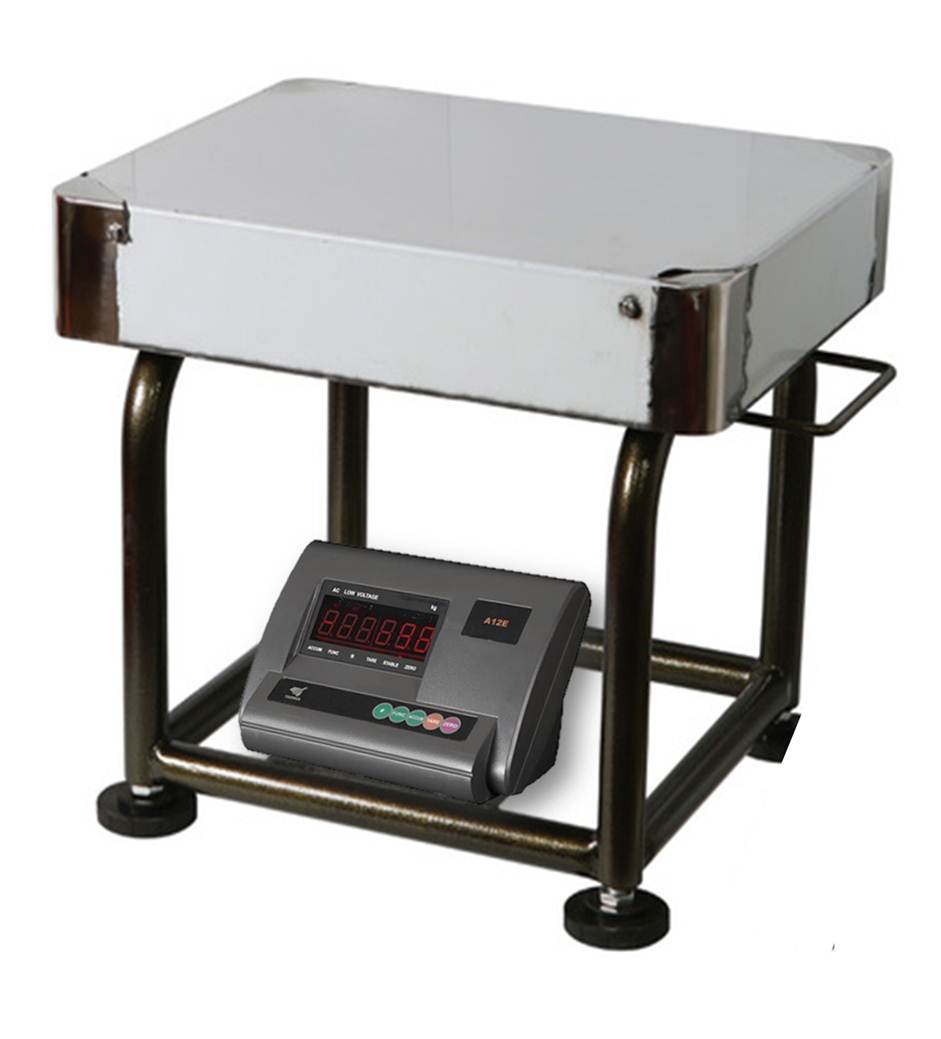

BH (A12ECW) Digital Chicken Weigher

OIML and NTEP indicator XK3190-A12/A12E

Introduction:
Fast speed, high precision, A/D conversion
Anti-vibration software
Applied in platform scale, floor scale, weighing system  equipped with 1-4 load cell.

  • A/D conversion with readability 1/30000
  • Use inner code to replace weight observing and analysis tolerance
  • Software to strength anti-vibration ability
  • Zero-tracking, Zero range setup (auto/manual)
  • Setup digital filter intensity, range and stable time
  • Counting function with unit data save protection in case of power off
  • Alarm for low battery and auto power off when low battery

Optional function:
1. KG/LB switch function
2. Animal scale function (A12, A12S only)
3. Two fixed- value outputs function with TTL output

DescriptionDownload
Model:   A12E-CW60
  • Capacity:   60kg x 10g
  • Power Supply:   AC Adaptor, pV/500mA
  • Temperature: 0°C ~ 40°C
  • Platform Size (MM) (LWH):   330 x 390 x 370
Model:   A12E-CW150
  • Capacity:   150kg x 20g
  • Power Supply:   AC Adaptor, pV/500mA
  • Temperature: 0°C ~ 40°C
  • Platform Size (MM) (LWH):   330 x 390 x 370
Model:   A12E-CW200
  • Capacity:   200kg x 50g
  • Power Supply:   AC Adaptor, pV/500mA
  • Temperature: 0°C ~ 40°C
  • Platform Size (MM) (LWH):   330 x 390 x 370
Model:   A12E-CW300
  • Capacity:   300kg x 50g
  • Power Supply:   AC Adaptor, pV/500mA
  • Temperature: 0°C ~ 40°C
  • Platform Size (MM) (LWH):   330 x 390 x 370
Options: **Mild Steel with Mild Steel Structure **Stainless Steel with Stainless Steel Structure
