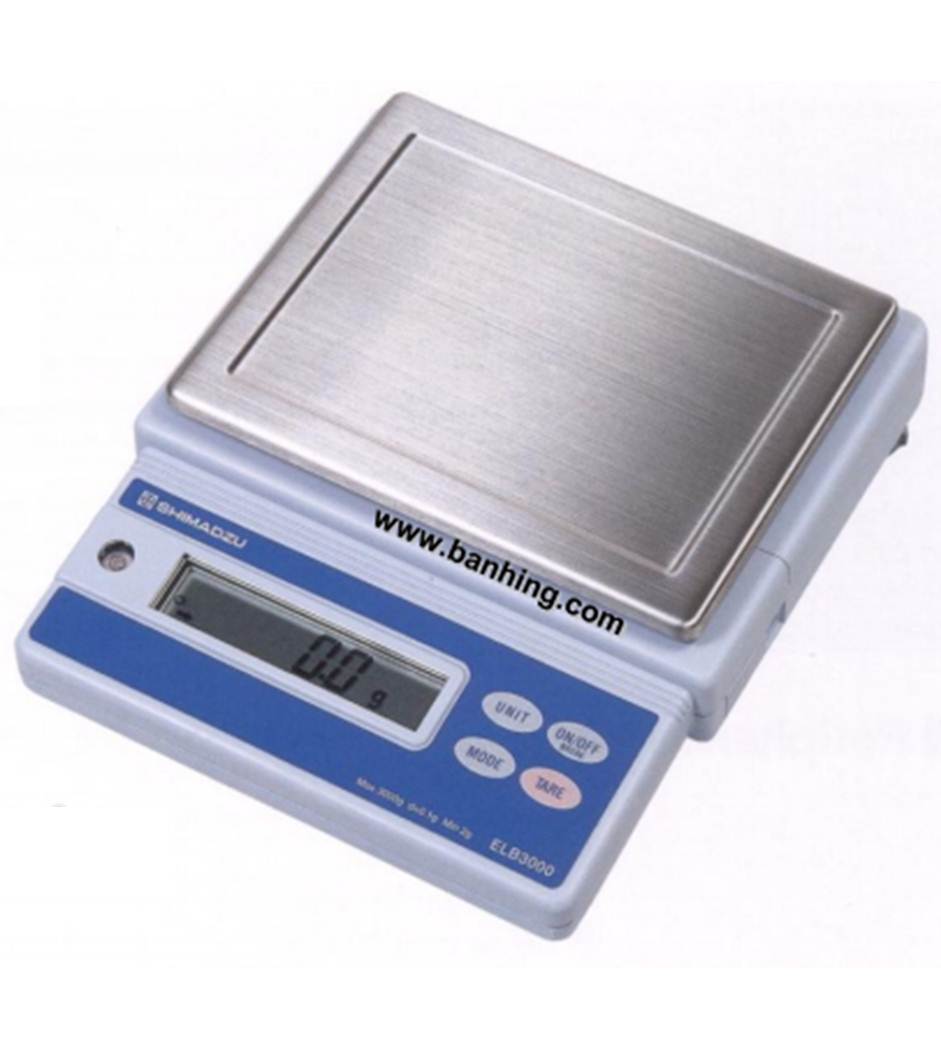

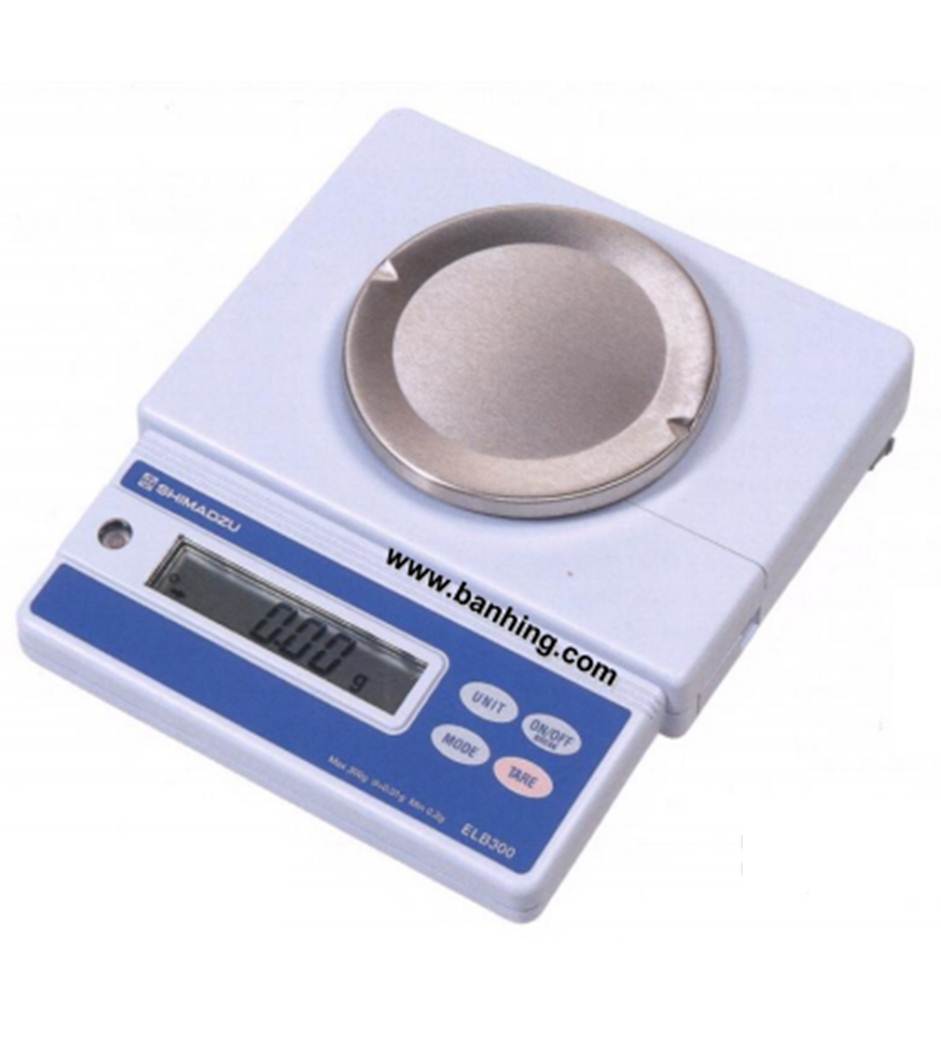

Shimadzu (ELB series) Portable Electronic Balance
• Designed for accuracy Level indicator and adjustable legs are part of our design to enable accurate weighing.
• One-second response Fast read-out and high stability save time and increase your productivity.
• Long battery life / Auto power off Continuous operation capacity of 40 hours makes you feel connected to power anywhere. Auto-power-off function prevents unnecessary consumption of batteries.
• Excellent Durability Durability is an important issue especially in field use. Base structure is a metal die cast. Overload prevention mechanism protects the load cell.
• Useful Functions Piece counting, percent display, various unit conversions are standard features. Solid specific gravity measurement software is installed as a standard feature supported by optional accessories.
• Weigh and record in the field Adding dual-power EP-60A Electronic Printer makes a totally portable system operated with replaceable batteries. Electronic Printer can be connected without additional interface.
Features :~
Precision without compromise in the field
BAN
DescriptionDownload

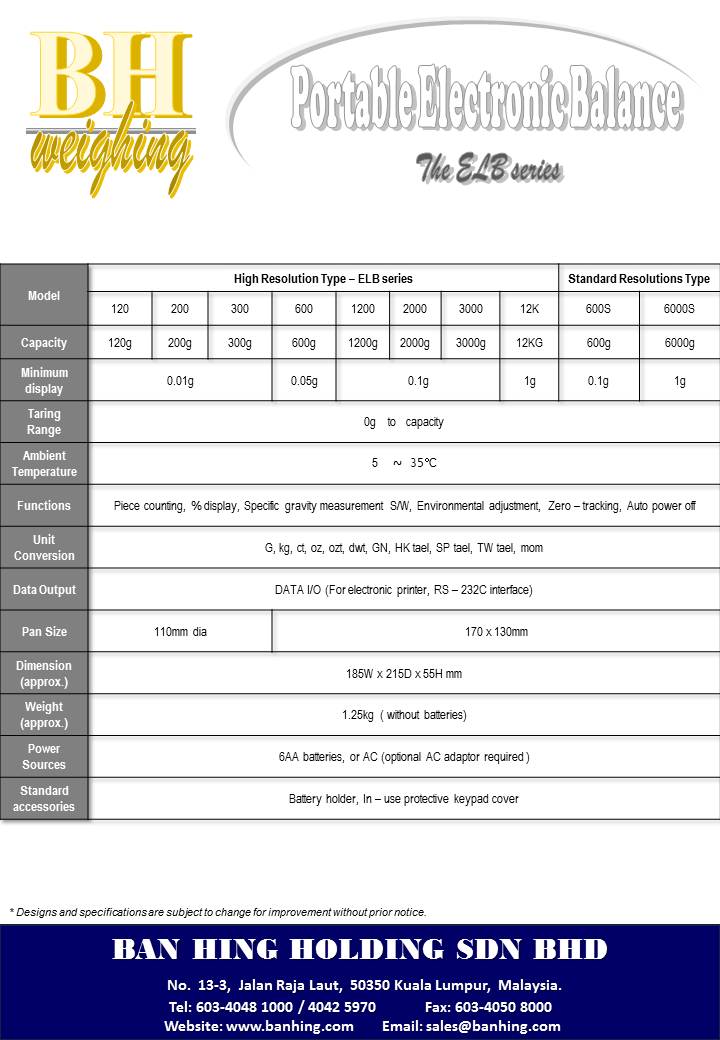

High Resolution Type – ELB series Model: ELB-Series
- Capacity: 120g / 200g / 300g
- Minimum display: 0.01g
- Taring Range: 0g to capacity
- Ambient Temperature: 5 ~ 35°C
- Functions: Piece counting, % display, Specific gravity measurement S/W, Environmental adjustment, Zero – tracking, Auto power off
- Unit Conversion: G, kg, ct, oz, ozt, dwt, GN, HK tael, SP tael, TW tael, mom
- Data Output: DATA I/O (For electronic printer, RS – 232C interface)
- Pan Size: 110mm dia
- Dimension (approx.): 185W x 215D x 55H mm
- Weight (approx.): 1.25kg ( without batteries)
- Power Sources: 6AA batteries, or AC (optional AC adaptor required)
- Standard accessories: Battery holder, In – use protective keypad cover
- Capacity: 600g
- Minimum display: 0.05g
- Taring Range: 0g to capacity
- Ambient Temperature: 5 ~ 35°C
- Functions: Piece counting, % display, Specific gravity measurement S/W, Environmental adjustment, Zero – tracking, Auto power off
- Unit Conversion: G, kg, ct, oz, ozt, dwt, GN, HK tael, SP tael, TW tael, mom
- Data Output: DATA I/O (For electronic printer, RS – 232C interface)
- Pan Size: 170 x 130mm
- Dimension (approx.): 185W x 215D x 55H mm
- Weight (approx.): 1.25kg ( without batteries)
- Power Sources: 6AA batteries, or AC (optional AC adaptor required)
- Standard accessories: Battery holder, In – use protective keypad cover
- Capacity: 1200g/ 2000g / 3000g
- Minimum display: 0.1g
- Taring Range: 0g to capacity
- Ambient Temperature: 5 ~ 35°C
- Functions: Piece counting, % display, Specific gravity measurement S/W, Environmental adjustment, Zero – tracking, Auto power off
- Unit Conversion: G, kg, ct, oz, ozt, dwt, GN, HK tael, SP tael, TW tael, mom
- Data Output: DATA I/O (For electronic printer, RS – 232C interface)
- Pan Size: 170 x 130mm
- Dimension (approx.): 185W x 215D x 55H mm
- Weight (approx.): 1.25kg ( without batteries)
- Power Sources: 6AA batteries, or AC (optional AC adaptor required)
- Standard accessories: Battery holder, In – use protective keypad cover
- Capacity: 12Kg
- Minimum display: 1g
- Taring Range: 0g to capacity
- Ambient Temperature: 5 ~ 35°C
- Functions: Piece counting, % display, Specific gravity measurement S/W, Environmental adjustment, Zero – tracking, Auto power off
- Unit Conversion: G, kg, ct, oz, ozt, dwt, GN, HK tael, SP tael, TW tael, mom
- Data Output: DATA I/O (For electronic printer, RS – 232C interface)
- Pan Size: 170 x 130mm
- Dimension (approx.): 185W x 215D x 55H mm
- Weight (approx.): 1.25kg ( without batteries)
- Power Sources: 6AA batteries, or AC (optional AC adaptor required)
- Standard accessories: Battery holder, In – use protective keypad cover
- Capacity: 600s
- Minimum display: 0.1g
- Taring Range: 0g to capacity
- Ambient Temperature: 5 ~ 35°C
- Functions: Piece counting, % display, Specific gravity measurement S/W, Environmental adjustment, Zero – tracking, Auto power off
- Unit Conversion: G, kg, ct, oz, ozt, dwt, GN, HK tael, SP tael, TW tael, mom
- Data Output: DATA I/O (For electronic printer, RS – 232C interface)
- Pan Size: 170 x 130mm
- Dimension (approx.): 185W x 215D x 55H mm
- Weight (approx.): 1.25kg ( without batteries)
- Power Sources: 6AA batteries, or AC (optional AC adaptor required)
- Standard accessories: Battery holder, In – use protective keypad cover
- Capacity: 6000s
- Minimum display: 1g
- Taring Range: 0g to capacity
- Ambient Temperature: 5 ~ 35°C
- Functions: Piece counting, % display, Specific gravity measurement S/W, Environmental adjustment, Zero – tracking, Auto power off
- Unit Conversion: G, kg, ct, oz, ozt, dwt, GN, HK tael, SP tael, TW tael, mom
- Data Output: DATA I/O (For electronic printer, RS – 232C interface)
- Pan Size: 170 x 130mm
- Dimension (approx.): 185W x 215D x 55H mm
- Weight (approx.): 1.25kg ( without batteries)
- Power Sources: 6AA batteries, or AC (optional AC adaptor required)
- Standard accessories: Battery holder, In – use protective keypad cover
Download PDF:
