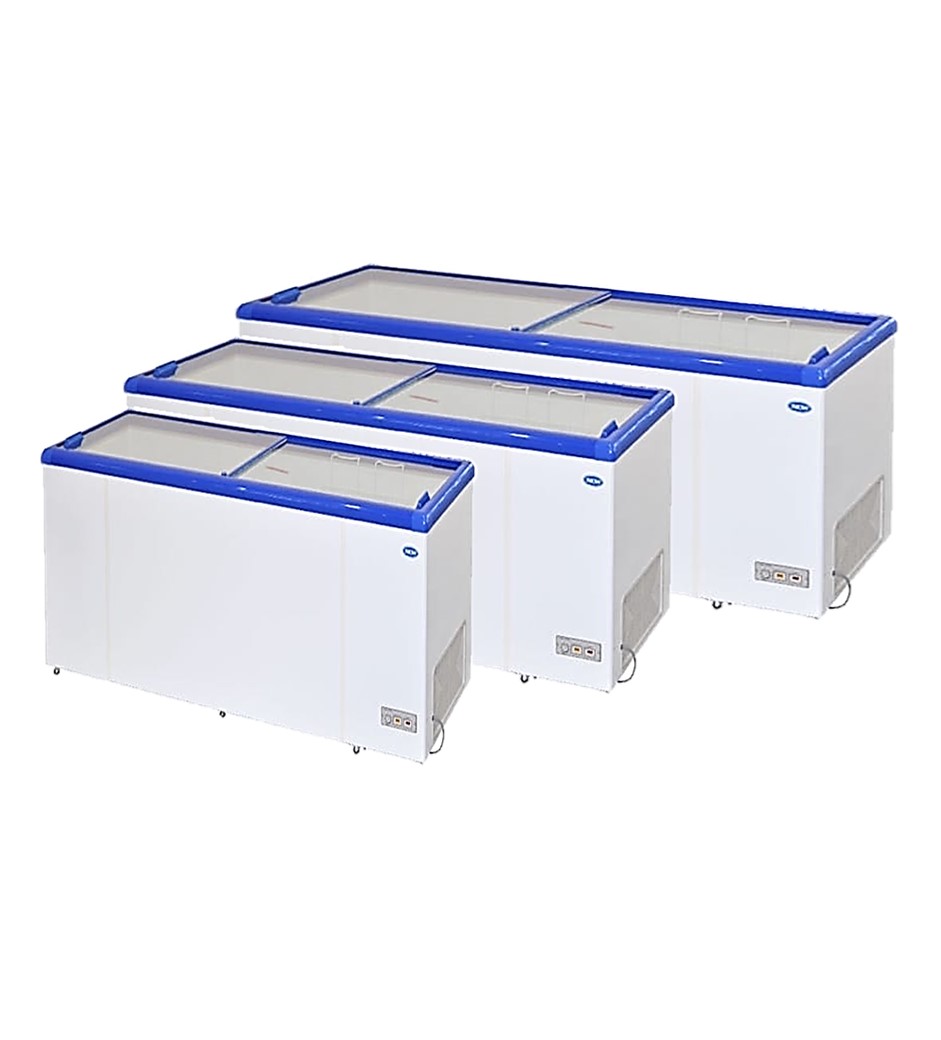

(GL Series) Chest Freezer

Outer Panel & Interior cabinet
• Mild Steel and Galvanized steel Sheet with epoxy powder coating
Evaporator & Condenser
• Zink coated buddy tube
Insulation
• Polyurethane foam, 60mm thick (CFC free) 38mm thick for cooler
Refrigerant
• R 134a (CFC free)
Power Source
• 220-240V, single Phase

DescriptionDownload
Model:   450GL
  • Total Capacity: 420 liter
  • Effective Capacity:  360 liter
  • External Dimension:  1329(W) x 662(D) x 865(H) mm
  • Internal Dimension:   1200(W) x 530(D) x 703(H) mm
  • Door Type:  Flat Glass Sliding Lid
  • Input Power:  200 watts
  • Operating Power:  1.8A
  • Power consumption (24h at 30⁰C ambient):  4 kwh/24h
  • Temperature range at 30⁰C ambient: ≥-18
  • Compressor Power: 1/3 hp
  • Net / Gross Weight:  75 / 91 kg
Model:   600GL
  • Total Capacity: 540 liter
  • Effective Capacity:  460 liter
  • External Dimension:  1659(W) x 662(D) x 865(H) mm
  • Internal Dimension:   1530(W) x 530(D) x 703(H) mm
  • Door Type:  Flat Glass Sliding Lid
  • Input Power:  220 watts
  • Operating Power:  1.9A
  • Power consumption (24h at 30⁰C ambient):  4.4 kwh/24h
  • Temperature range at 30⁰C ambient: ≥-18
  • Compressor Power: 1/3 hp
  • Net / Gross Weight:  87 / 109 kg
Model:   750GL
  • Total Capacity: 710 liter
  • Effective Capacity:  600 liter
  • External Dimension:  2094(W) x 662(D) x 865(H) mm
  • Internal Dimension:   1966(W) x 530(D) x 703(H) mm
  • Door Type:  Flat Glass Sliding Lid
  • Input Power:  250 watts
  • Operating Power:  2.5A
  • Power consumption (24h at 30⁰C ambient):  5.3 kwh/24h
  • Temperature range at 30⁰C ambient: ≥-18
  • Compressor Power: 3/8 hp
  • Net / Gross Weight:  112 / 137 kg
