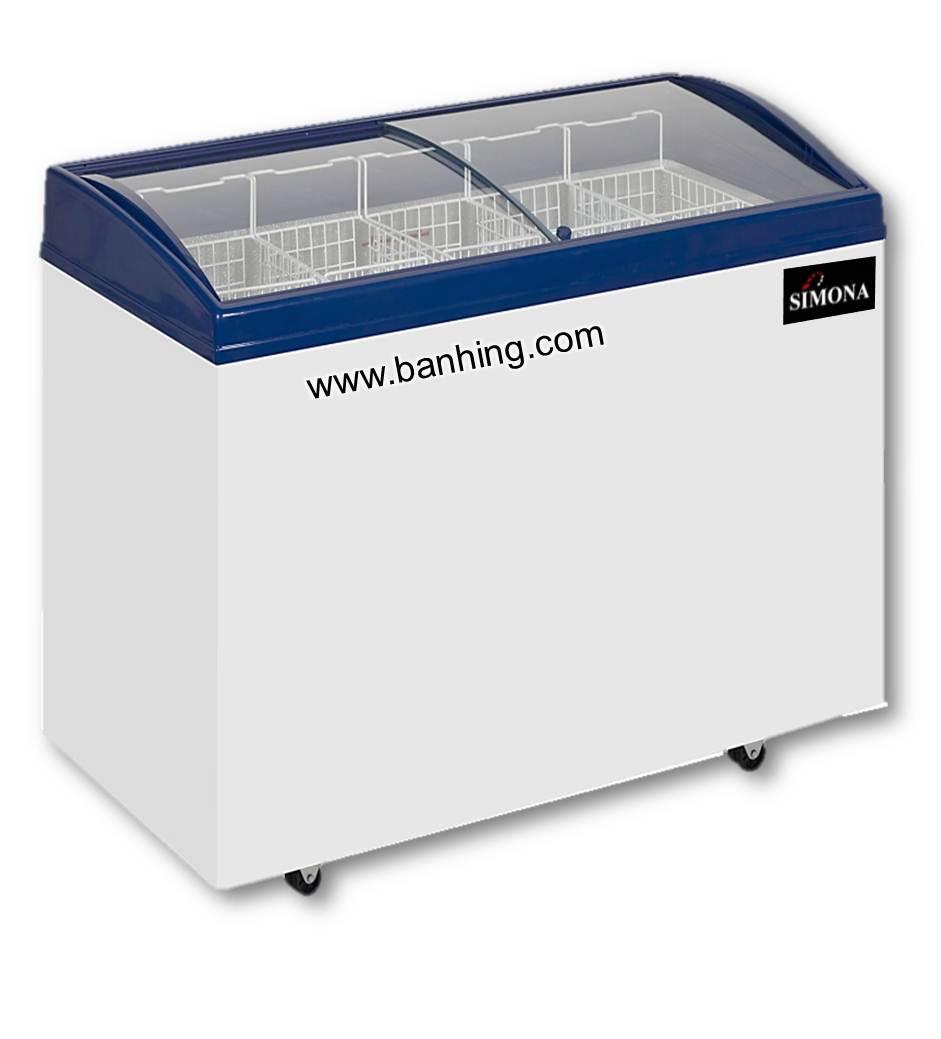

(SMSC series) Curved Glass Slanting Lid Freezer

Outer Panel & Interior cabinet

  • Mild Steel and Galvanized steel Sheet with epoxy powder coating

Evaporator & Condenser

  • Zink coated buddy tube

Insulation

  • Polyurethane foam, 60mm thick (CFC free) 38mm thick for cooler

Refrigerant

  • R 134a (CFC free)

Power Source

  • 220-240V, single Phase
DescriptionDownload
Model:  SM250SC
  • External Dimension(mm):    W827 x D623 x H895 x H1(825)
  • Internal Dimension(mm):   W695 x D491 x H732 x H1(666)
  • Total Capacity:   205L
  • Effective Capacity:   175L
  • Lod/ Door Type:   Curved Glass Slanting Lid
  • Power Consumption(24H  at  30⁰C  Ambient):     2.8kWh
  • Temp. Range at 30⁰C  Ambient:      -18 C to -26 C
  • Net Weight:   48kg
  • Gross Weight:     58kg
  • Compressor Power:    1/5hp
  Model:   SM350SC
  • External Dimension(mm):   W1052 x D662 x H895 x H1(825)
  • Internal Dimension(mm): W920 x D530 x H723 x H1(666)
  • Total Capacity:   300L
  • Effective Capacity:   255L
  • Lid/ Door Type:    Curved Glass Slanting Lid
  • Power Consumption(24H at 30⁰C  Ambient)  :   3.7kWh
  • Temp. Range at 30⁰C  Ambient:   -18 C to -26 C
  • Net Weight:   59kg
  • Gross Weight:   71kg
  • Compressor Power:   1/4hp
  Model:   SM450SC
  • External Dimension(mm):     W1332 x D6695 x H895 x H1(825)
  • Internal Dimension(mm):     W1200 x D563 x H723 x H1(666)
  • Total Capacity:      430L
  • Effective Capacity:     370L
  • Lid/ Door Type:    Curved Glass Slanting Lid
  • Power Consumption(24H at 30⁰C  Ambient)  :   3.9kWh
  • Temp. Range at 30⁰C  Ambient:   -18 C to -26 C
  • Nnet Weight:   71kg
  • Gross Weight:   87kg
  • Compressor Power:   1/3hp
