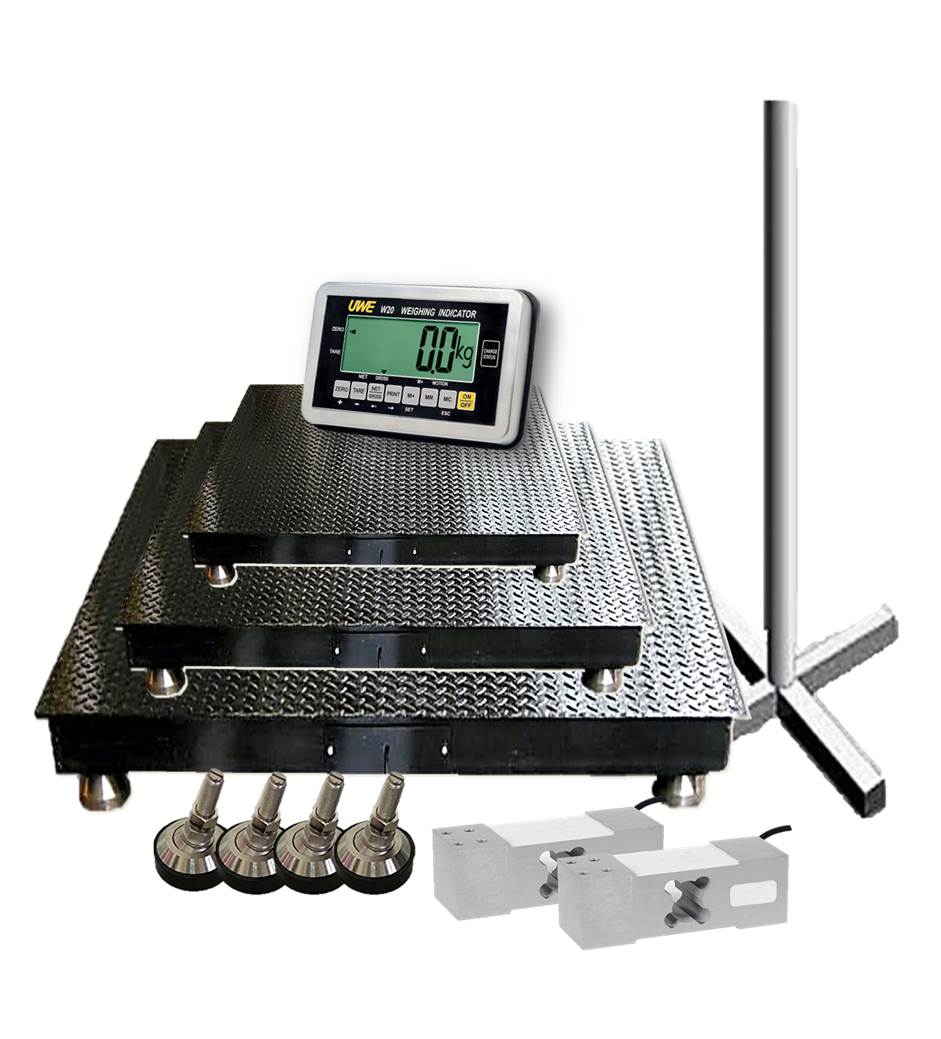

UWE (UW20) Digital Floor Scale

  • All Stainless Steel Housing
  • Wash Down Design According to IP65
  • Up to 1/30000 Display Resolution
  • User Friendly Setup, Calibration and Operation Procedures
  • Programmable Capacity, Display Readability, Decimal Position, Zero range, Zero Tracking Range/Speed and Motion Detection range for Various Applications and Environments
  • Programmable Computer and Printer Output Transmission and Data Format
  • Maximum Number of Loads Cells Connected= 8 x 350Ω
  • Weighing Unit Selectable: Metric Ton, Kilogram, Pound and Gram
  • Tact-Switch keyboard
  • Equipped with Memory Function and Motion indicating Device
  • Password Function to prevent Unauthorized Access
  • Dual Power Sources: Built-in Rechargeable battery or Power Adaptor
  • Low Battery warning Signal
  • Table Stand, Backlight and Built-in Rechargeable battery are included
DescriptionDownload
Model:   UW20-Series
  • Capacity:   1ton
  • Platform size:   1m x 1m
  Model:   UW20-Series
  • Capacity:  3tons
  • Platform size:  1.2m x 1.2m
  Model:   UW20-Series
  • Capacity:  5tons
  • Platform size:  1.5m x 1.5m
  Model:   UW20-Series
  • Capacity:   10tons
  • Platform size:  1.5m x 1.5m
