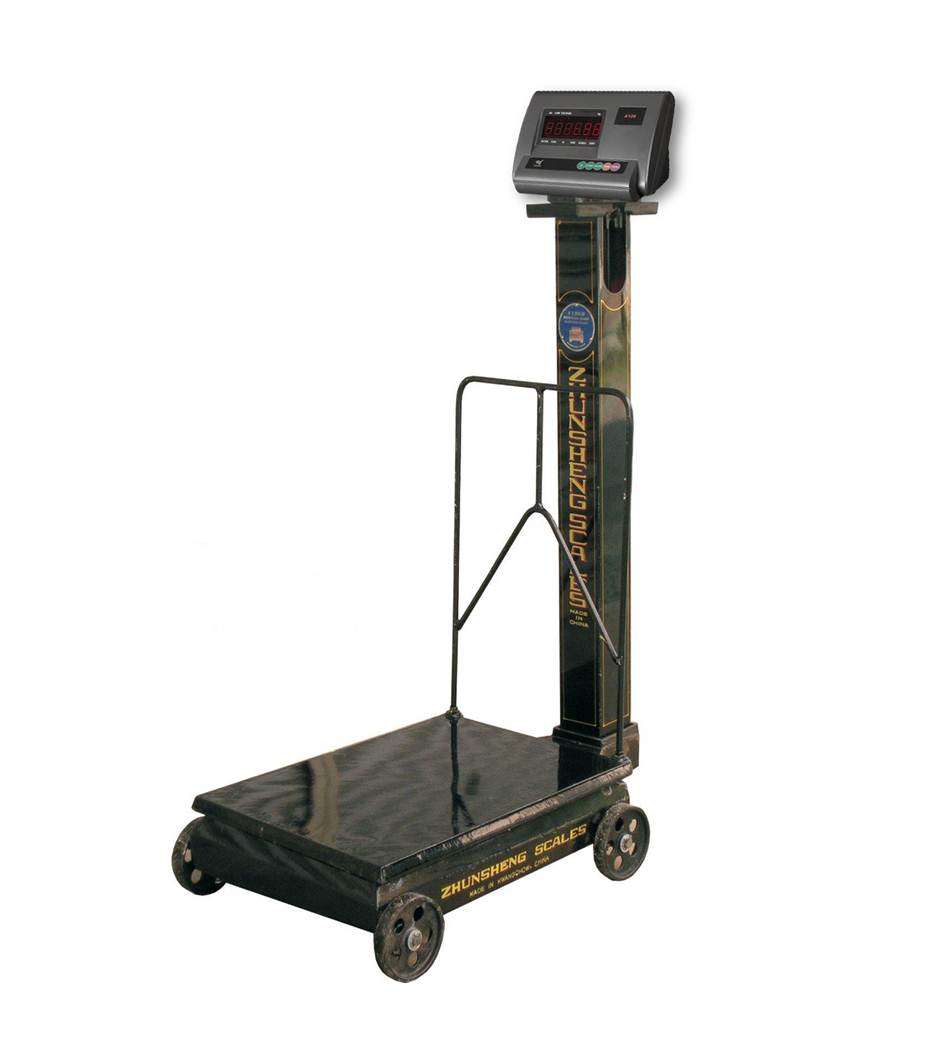

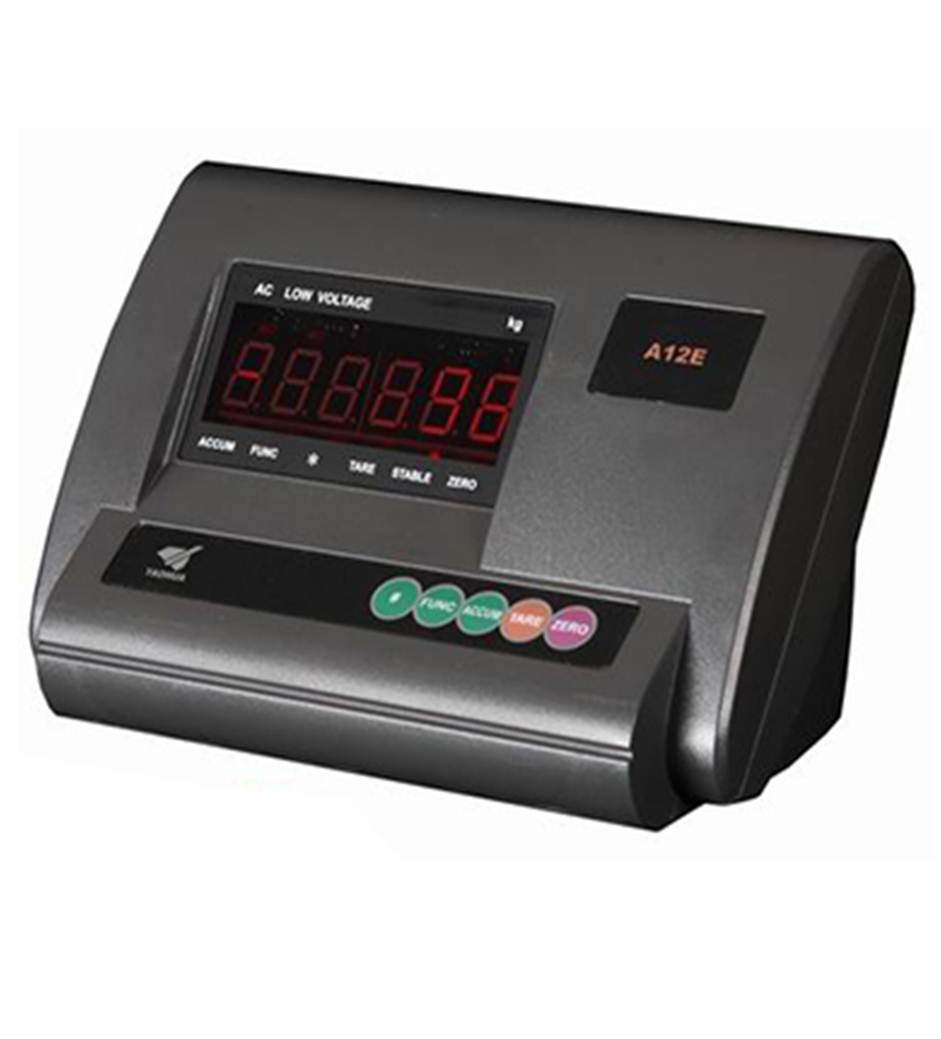

BH (A12E series) Digital Conversion Platform Scale

Introduction:

  • Fast speed, high precision, A/D conversion
  • Anti-vibration software
  • Applied in platform scale, floor scale, weighing system equipped with 1-4 load cell.

Features :~

  • A/D conversion with readability 1/30000
  • Use inner code to replace weight
  • observing and analysis tolerance
  • Software to strength anti-vibration ability
  • Zero-tracking, Zero range setup (auto/manual)
  • Setup digital filter intensity, range and stable time
  • Counting function with unit data save protection in case of power off
  • Alarm for low battery and auto power off when low battery

Optional function:

  • 1. KG/LB switch function
  • 2. Animal scale function (A12, A12S only)
  • 3. Two fixed- value outputs function with TTL output
DescriptionDownload
Model: A12E-300
  • Capacity : 300kg
  • Division : 50g
  • Platform size (mm) : 630 x 420
Model: A12E -500
  • Capacity : 500kg
  • Division : 100g
  • Platform size (mm) : 650 x 600
Model: A12E-1000
  • Capacity : 1000kg
  • Division : 500g
  • Platform size (mm) : 740 x 720
Model: A12E -2000
  • Capacity : 2000kg
  • Division : 1000g
  • Platform size (mm) : 1610 x 1118
