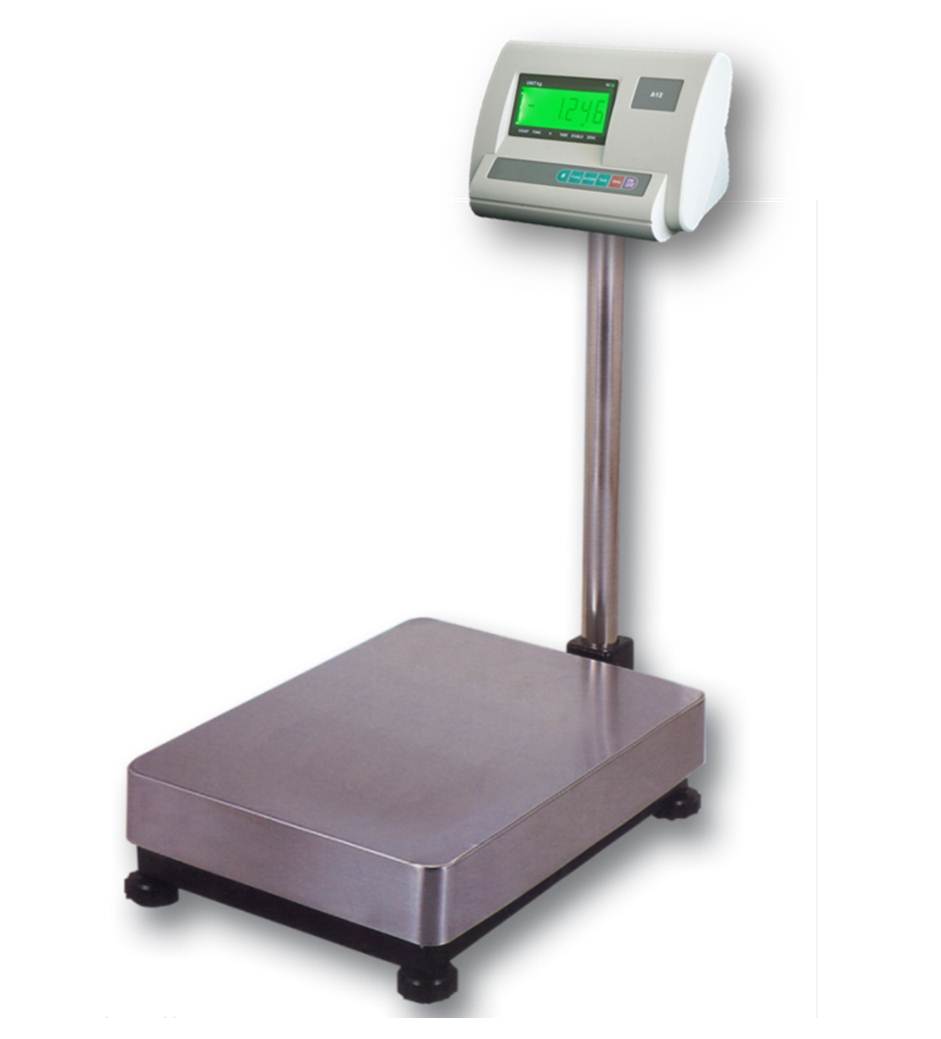

BH (A12EW series) Digital Platform Scale

Introduction:

  • Fast speed, high precision, A/D conversion
  • Anti-vibration software
  • Applied in platform scale, floor scale, weighing system equipped with 1-4 load cell.

Features :~

  • A/D conversion with readability 1/30000
  • Use inner code to replace weight
  • observing and analysis tolerance
  • Software to strength anti-vibration ability
  • Zero-tracking, Zero range setup (auto/manual)
  • Setup digital filter intensity, range and stable time
  • Counting function with unit data save protection in case of power off
  • Alarm for low battery and auto power off when low battery

Optional function:

  • KG/LB switch function
  • Animal scale function (A12, A12S only)
  • Two fixed- value outputs function with TTL output
DescriptionDownload
Model: A12EW-60
  • Capacity : 60kg
  • Division : 10g
  • Platform size (mm) : 300 x 400
Model: A12EW-150
  • Capacity : 150kg
  • Division : 20g
  • Platform size (mm) : 400 x 500
Model: A12EW-300
  • Capacity : 300kg
  • Division : 50g
  • Platform size (mm) : 450 x 600
Model: A12EW-500
  • Capacity : 500kg
  • Division : 100g
  • Platform size (mm) : 500 x 600
Model: A12EW-600
  • Capacity : 600kg
  • Division : 100g
  • Platform size (mm) : 600 x 800
Model: A12EW-1000
  • Capacity : 1ton
  • Division : 200g
  • Platform size (mm) : 700 x 800
