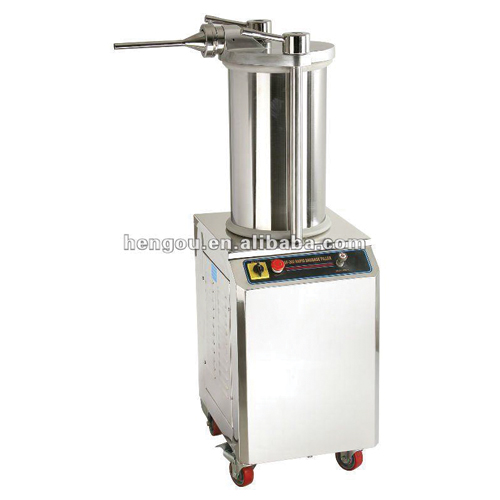

BH (OSF series) Sausage Filler

The Rapid Sausage Filler of series OSF is an ideal device used for processing and filling sausages, ham and egg in meat processing enterprise and individual industrial and commercial unit. It is designed with stainless steel structure, luxurious and artistic appearance, low noise and high efficiency. The sausage filler is with large volume charging basket and up-down filling by hydraulic pressure system. The double control between conversed switch and foot pedal switch makes it safer to operate. The side-linked hydraulic pressure packages make it more convenient to install, remove and maintain this sausage filler.

DescriptionDownload
Model: OSF-150
  • Volume : 15 L
  • Rated frequency : 50 Hz
  • Voltage : ~ 110V / ~ 220V / ~ 230V / ~240V / 3~ 380V
  • Power : 0.55 kW
  • Productivity : 300 kg/h
  • Net weight : 75 kg
  • Dimension : 600x400x1240
Model: OSF-260
  • Volume : 26 L
  • Rated frequency : 50Hz
  • Voltage : ~ 110V / ~ 220V / ~ 230V / ~240V / 3~ 380V
  • Power : 0.75 kW
  • Productivity : 400 kg/h
  • Net weight : 90 kg
  • Dimension : 640x485x1240
Model: OSF-350
  • Volume : 35 L
  • Rated frequency : 50Hz
  • Voltage : ~ 110V / ~ 220V / ~ 230V / ~240V / 3~ 380V
  • Power : 0.75 kW
  • Productivity : 600 kg/h
  • Net weight : 105 kg
  • Dimension : 735x560x1240
