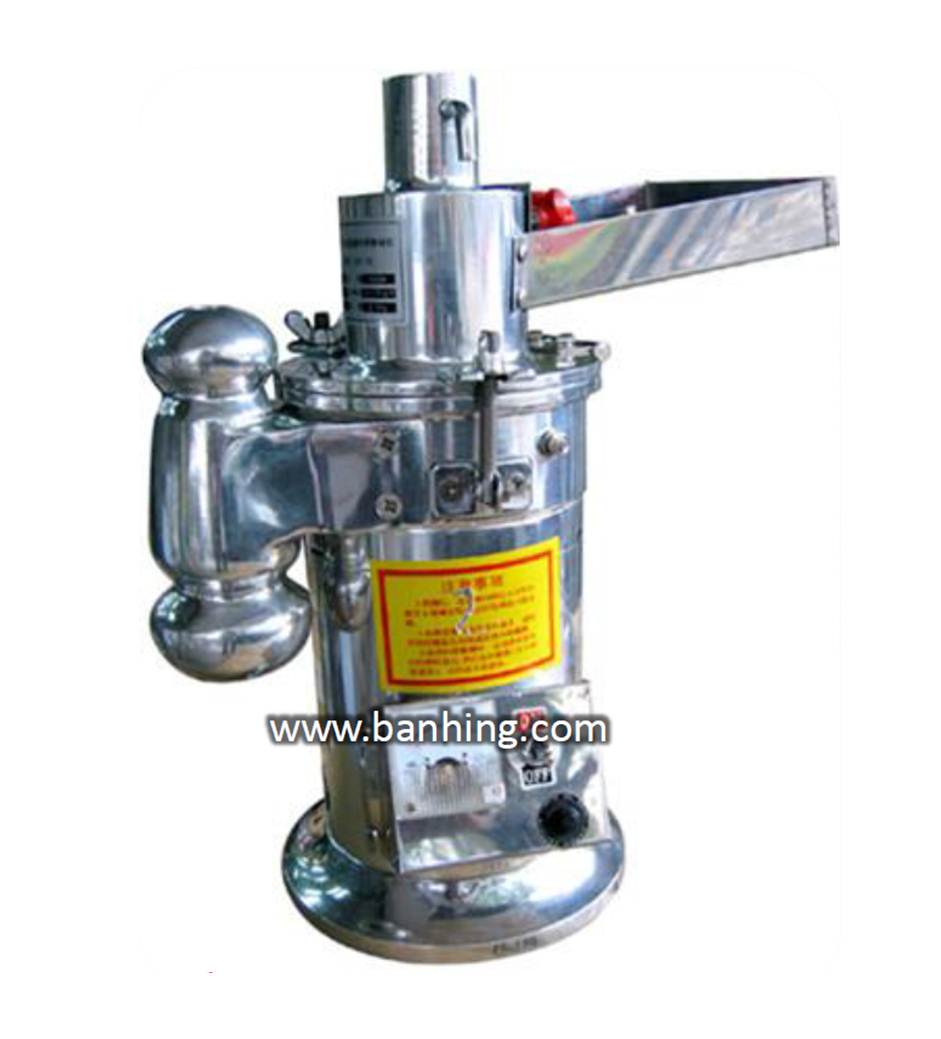

(DF) Herbal Grinder Machine

The High Speed Grinding Machine with a large Capacity, Heavy Duty, Continuous operation will produce Herb Powder (depending on the herb and screen used). The Grinding Machine is the best Heavy Duty Herb Powder Grinders ever been made and the most popular Grinders in Herbal Powder making industry such as herbal and pharmaceutical, food, agricultural, fishery, feed, chemical materials, powder paint, and laboratories. Fast, easy to use. Will easy grind any herb: roots, branches, leaves, twigs,
seeds, bone, stone, crystals.

Specification:~

  •  The grinding object medicine must be totally dried. The drier the finer particle can be obtained in grinding.
  •  Normally all medicine can be grinded to fine powder within one minute. If the leading time for grinding may be prolonged to two or more minutes, please pause a few seconds after the first minute & then continue the other minute.
  • Please keep two third space of crushing bowl to allow the grinding having enough space to crush.
  • Damp medicine and over-load in crushing bowl will block the crushing knives and stop the motor turning though the electricity is on. At this moment, the electricity switch must be turned off to prevent fuses and motor from burnout.
  • When the motor is found not turning after electricity on, please check on fuses, switch and plug first to see whether they are properly working.
DescriptionDownload
Model:   DDF-15
  • Motor Power:   1.5HP
  • Voltage:   220v
  • Mesh:   60 ~ 180mm
  • Productivity:   10 ~ 20 (kg/h)
  • Weight:    7.5kg
  • Dimension:   300(L) x 170(W) x 400(H)
Model: DDF-20
  • Motor Power:   2HP
  • Voltage:   220v
  • Mesh:   60 ~ 180mm
  • Productivity:   15 ~ 30 (kg/h)
  • Weight:   25kg
  • Dimension: 500(L) x 170(W) x 550(H)
