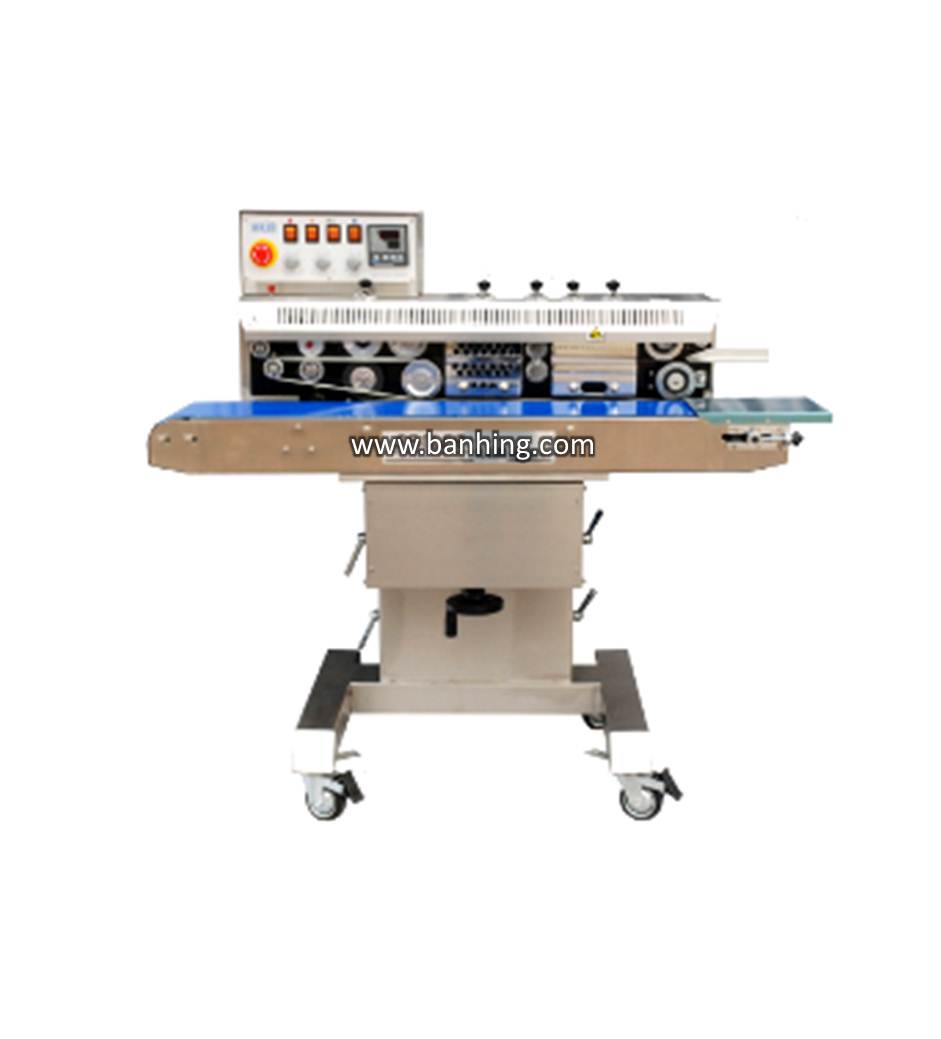

(FRM1120L) Dry Ink Coding Continuous Sealing Machine

FRM-1120L is designed to quickly and efficiently seal any thermoplastic material including PE, PPE, stand up pouches, gusseted bags, and moisture barrier bags. This sealer can also be used in a wide array of fields such as: food, medical, and cosmetics industries.

Features :~

  • Durable stainless steel construction
  • Easy to operate - minimal operator training
  • Fast warm up time
  • Ideal for medium duty applications
  • Tilting seal head which allows the machine to tilt up to 30 degrees
  • Suitable for any product including liquids
  • Solid state digital temperature controller that maintains the seal bars at a proper temperature for consistent seal quality
  • Motorized rubber conveyor for speed control
  • Knurled pressure wheels with variable pressure adjustment
  • Sealing method - constant/direct heat accompanied with a pair each of cooling and heating blocks
  • Fully adjustable conveyor (both height and depth of conveyor in relation to seal bars can be adjusted)
  • Dry ink coding allows for printing at the seal line
  • Unit feeds from Right to Left
  • Spare Parts Kit Includes: PC Board, PTFE Belt, Wheel Belt, Carbon Brush, and Type set
DescriptionDownload
Model:     FRM-1120L
  • Power:     110V / 60Hz
  • Motor Power:     50W
  • Sealing Speed:     0-394 inches/minute
  • Temperature Range:     0-300⁰C
  • Dimensions:     43 x 24 x 41 inch
  • Weight:     187lbs / 275(Gw)

Download PDF:
