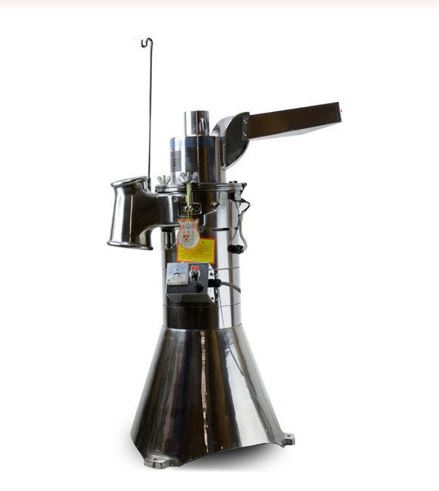

(HG Series) High Speed Herbal Grinding Machine

Features:~

The High  Speed Herbal Grinding Machine  with a Large Capacity, Heavy Duty, Continuous  Operation  will produce Herb Powder  (depending on the  herb  and screen used). The Herbal  Grinding Machine  is the best  Heavy Duty  Herb  Powder  Grinders ever been made  and the most popular  Herb  Grinders  in Herbal Powder  making Industry.  Such as  Herbal and  Pharmaceutical, Food, Agricultural , fishery, Feeds, Chemical Materials , Powder Paint  and Laboratories . Fast easy to use. Will easy grind  any herb roots,  branches, leaves, twigs, seeds, bones, stones, crystals , stainless  steel.

  • Continuous Operation
  • Open Feeder
  • Build in Ampere Meter, Fuse Housing
  • Powder Bag
  • Screen Mash

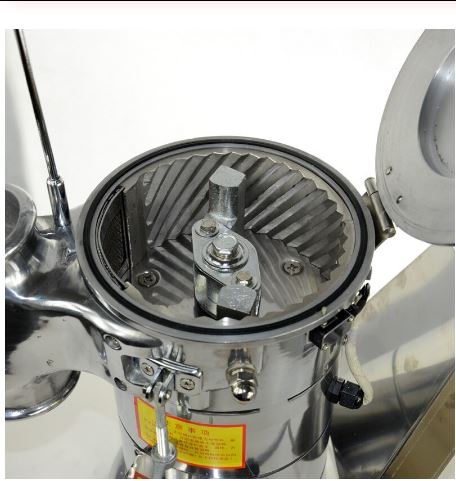

  • Grinding Blades



DescriptionDownload
Model:   HG-T 25
  • Motor Power:  2 HP
  • Voltage:   240V
  • Mesh:      60-180
  • Productivity : 1-25 kg/hr
  • Dimension (cm) : 33 (L) x 33 (W) x 80 (H)
  • Weight: 28 kg
Model:   HG-F 15
  • Motor Power:  1.5 HP
  • Voltage:   240V
  • Mesh:      10-120
  • Productivity : 15-25 kg/hr
  • Dimension (cm) : 63 (L) x 45 (W) x 93 (H)
  • Weight: 70 kg
Model:   HG-F 20
  • Motor Power:  2 HP
  • Voltage:   415V
  • Mesh:      10-120
  • Productivity : 15-30 kg/hr
  • Dimension (cm) : 63 (L) x 45 (W) x 93 (H)
  • Weight: 75 kg
Model:   HG-F 30
  • Motor Power:  3 HP
  • Voltage:   415V
  • Mesh:      10-120
  • Productivity : 30-50 kg/hr
  • Dimension (cm) : 75 (L) x 50 (W) x 110 (H)
  • Weight: 100 kg
Model:   HG-F 50
  • Motor Power:  5 HP
  • Voltage:   415V
  • Mesh:      10-120
  • Productivity : 40-60 kg/hr
  • Dimension (cm) : 85 (L) x 50 (W) x 110 (H)
  • Weight: 140 kg
