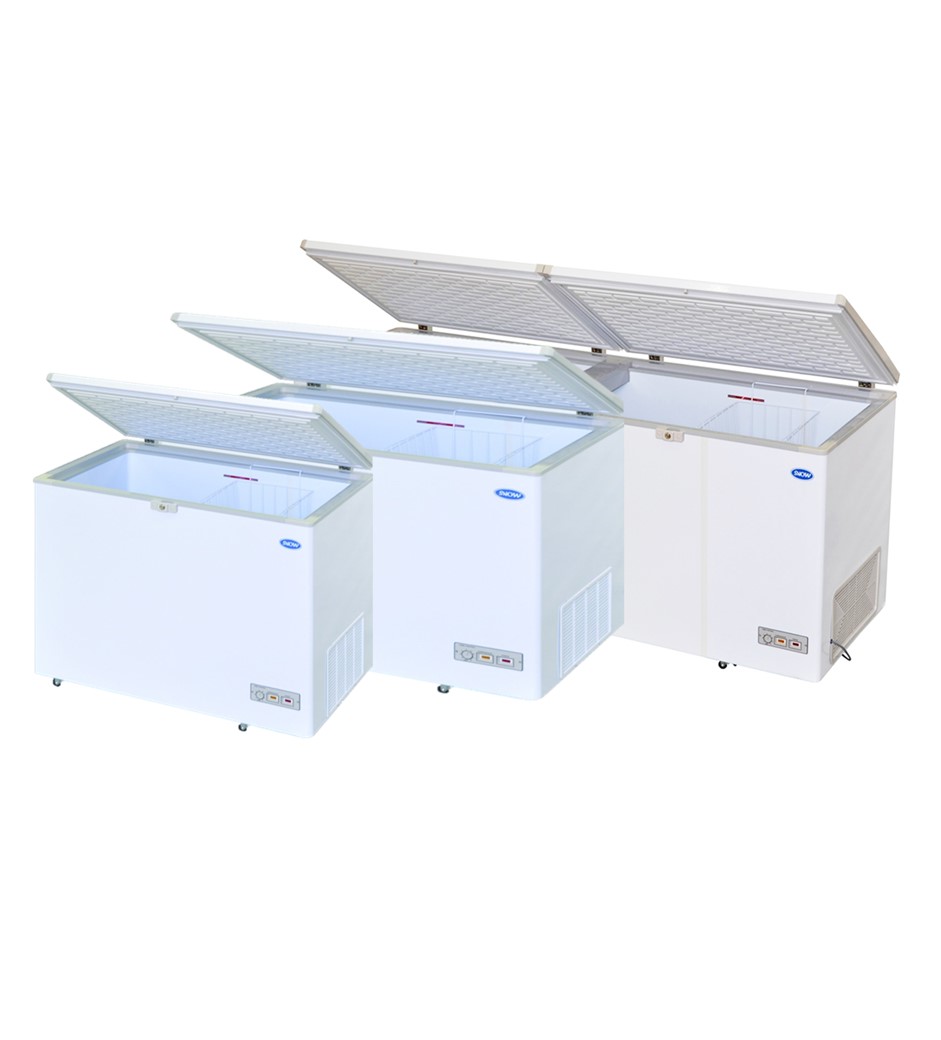

(LD series) Chest Freezer

Outer panel & Interior Cabinet

  • Mild steel and galvanized steel steel sheet with epoxy powder coating

Evaporator & Condenser

  • Zink coated bundy tube

Insulation

  • Polyurethane foam, 60mm thick (Cyclopentene - CFC Free) 38mm thick for cooler

Refrigerant

  • R 134a (CFC Free)

Power Source

  • 220-v240v, single phase 50Hz.



DescriptionDownload
Model:   150LD
  • Total Capacity: 150 liter
  • Effective Capacity:  137 liter
  • External Dimension:  610(W) x 705(D) x 865(H) mm
  • Internal Dimension:   485(W) x 530(D) x 703(H) mm
  • Door Type:  Lifting Solid Door
  • Input Power:  100 watts
  • Operating Power:  1A
  • Power consumption (24h at 30⁰C ambient):  2.0 kwh/24h
  • Temperature range at 30⁰C ambient: -18 ∼ -26
  • Compressor Power: 1/8 hp
  • Net / Gross Weight:  40 / 48 kg
Model:   250LD
  • Total Capacity: 230 liter
  • Effective Capacity:  210 liter
  • External Dimension:  820(W) x 705(D) x 865(H) mm
  • Internal Dimension:   695(W) x 530(D) x 703(H) mm
  • Door Type:  Lifting Solid Door
  • Input Power:  120 watts
  • Operating Power:  1.2A
  • Power consumption (24h at 30⁰C ambient):  2.6 kwh/24h
  • Temperature range at 30⁰C ambient: -18 ∼ -26
  • Compressor Power: 1/6 hp
  • Net / Gross Weight:  45 / 55 kg
Model:   350LD
  • Total Capacity: 320 liter
  • Effective Capacity:  290 liter
  • External Dimension:  1045(W) x 705(D) x 865(H) mm
  • Internal Dimension:   920(W) x 530(D) x 703(H) mm
  • Door Type:  Lifting Solid Door
  • Input Power:  140 watts
  • Operating Power:  1.4A
  • Power consumption (24h at 30⁰C ambient):  2.7 kwh/24h
  • Temperature range at 30⁰C ambient: -18 ∼ -26
  • Compressor Power: 1/5 hp
  • Net / Gross Weight:  52 / 64 kg
Model:   450LD
  • Total Capacity: 420 liter
  • Effective Capacity:  395 liter
  • External Dimension:  1325(W) x 705(D) x 865(H) mm
  • Internal Dimension:   1200(W) x 530(D) x 703(H) mm
  • Door Type:  Lifting Solid Door
  • Input Power:  180 watts
  • Operating Power:  1.6A
  • Power consumption (24h at 30⁰C ambient):  3.0 kwh/24h
  • Temperature range at 30⁰C ambient: -18 ∼ -26
  • Compressor Power: 1/4 hp
  • Net / Gross Weight:  66 / 82 kg
Model:   600LD/LDD
  • Total Capacity: 540 liter
  • Effective Capacity:  505 liter
  • External Dimension:  1655(W) x 705(D) x 865(H) mm
  • Internal Dimension:   1530(W) x 530(D) x 703(H) mm
  • Door Type:  Lifting Solid Door
  • Input Power:  210 watts
  • Operating Power:  1.8A
  • Power consumption (24h at 30⁰C ambient):  4.0 kwh/24h
  • Temperature range at 30⁰C ambient: -18 ∼ -26
  • Compressor Power: 1/3 hp
  • Net / Gross Weight:  78 / 100 kg

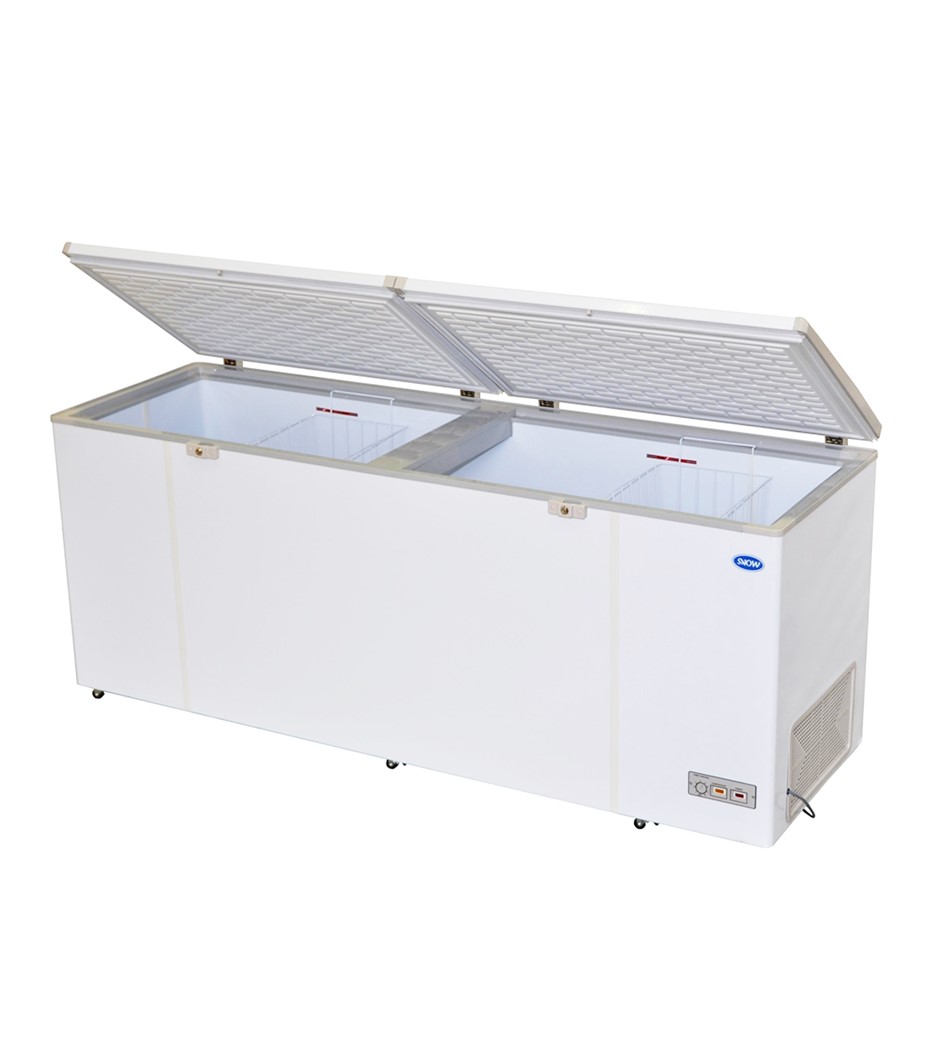

Model:   750LDD
  • Total Capacity: 710 liter
  • Effective Capacity:  655 liter
  • External Dimension:  2090(W) x 705(D) x 865(H) mm
  • Internal Dimension:   1966(W) x 530(D) x 703(H) mm
  • Door Type:  Lifting Solid Door
  • Input Power:  240 watts
  • Operating Power:  2.4A
  • Power consumption (24h at 30⁰C ambient):  5.1 kwh/24h
  • Temperature range at 30⁰C ambient: -18 ∼ -26
  • Compressor Power: 3/8 hp
  • Net / Gross Weight:  100 / 125 kg
