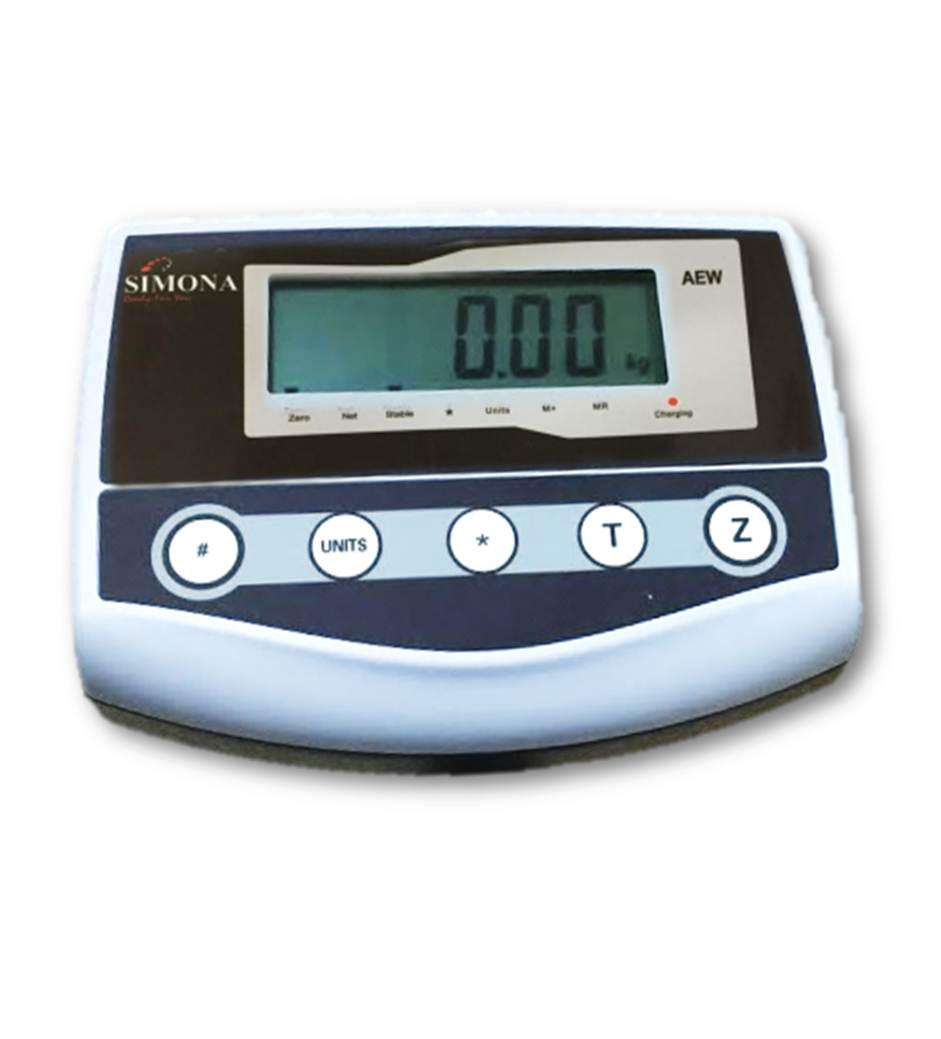

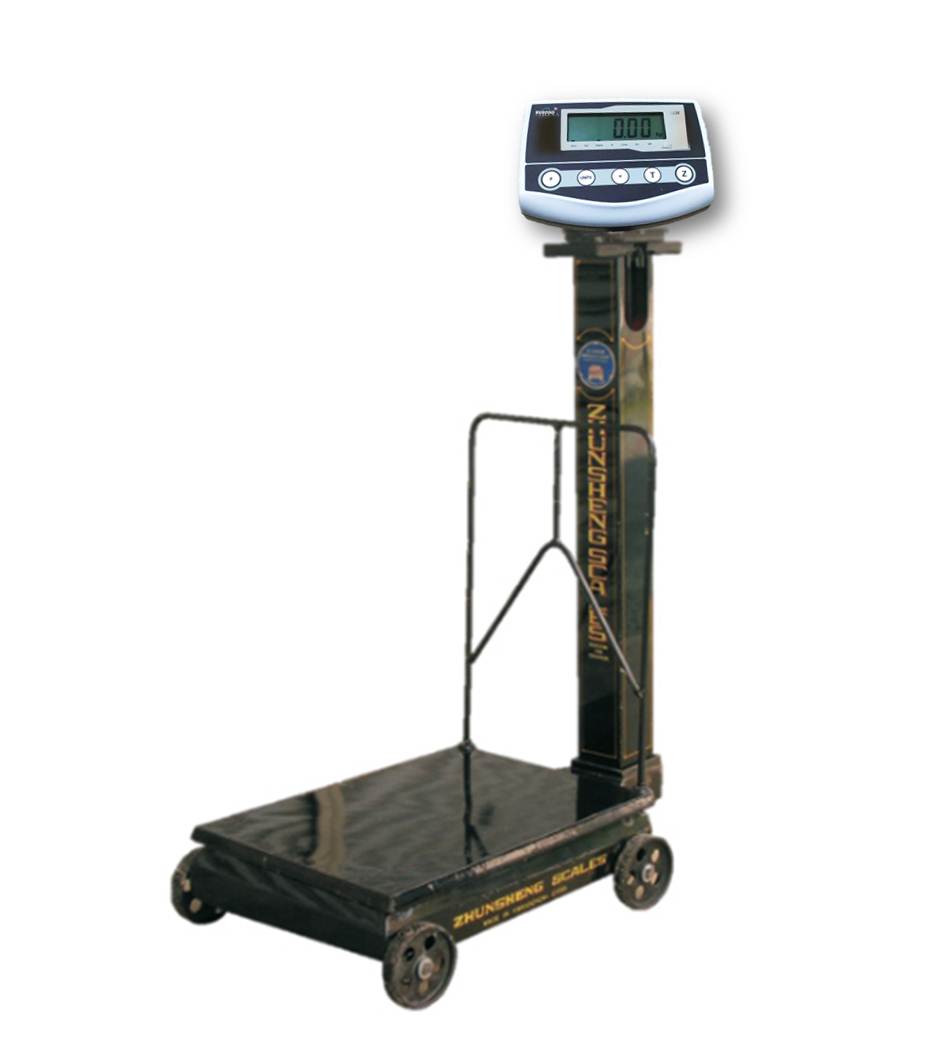

Simona (AEW series) Digital Conversion Platform Scale

AEW series of high-precision analog-digital conversion technology and special
software anti-vibration technology, AC and DC, suitable for electronic scales,
electronic platform scales such as the use of 1 to 4 sensors static weighing
system.

  • Aluminum die-casting series weighing platform scale body as a molding die
    for farmers markets, logistics, small-scale factories weighing
    structure of high strength, durable;
  • scale body appearance

Power Source:-

  • Input: AC 120 ~ 240V
  • Output: DC 10V/600mA

Power Consumption:-

  • Main System: Approx. 18mA
  • Main System with Backlight: Approx. 32mA
  • Main System with Backlight and RS232: Approx. 48mA
  • Battery Duration: No back light last about 160 hrs. and with backlight last about 120 hrs.
DescriptionDownload
Model:     AEW-300
  • Capacity:      300kg
  • Division:      50g
  • Platform Size (mm):     630 x 420
Model:     AEW-500
  • Capacity:      500kg
  • Division:      100g
  • Platform Size (mm):     650 x 600
Model:     AEW-1000
  • Capacity:      1000kg
  • Division:     500g
  • Platform Size (mm):     740 x 720
Model:     AEW-2000
  • Capacity:      2000kg
  • Division:      1000g
  • Platform Size (mm):     1610 x 1118
