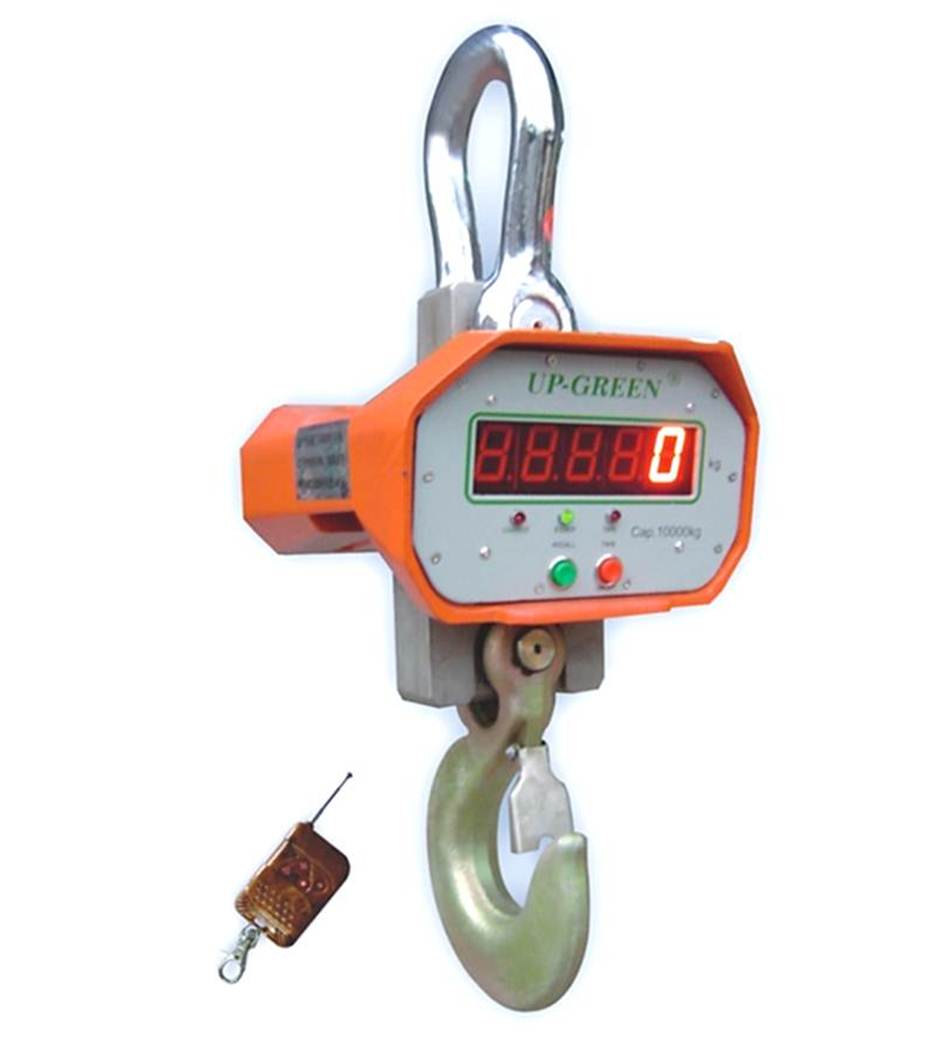

(UPW5000) Digital Crane Scale

Weighing Performance:

  • Good dynamic weighing system, weighing result not subject to influence of swaying.
  • Auto battery power display when shut on/off.
  • High accuracy and high stability because of 1,000,000 internal resolution.
  • Auto shut off (prevent of battery loss because of forget to shut off)
  • With remote controller, easy to operate.
  • Add up, auto add up, tare, remote tare, display hold, resolution choice display, random weigh revising.
  • Overload remind display, low battery warning.
  • Chroming, smooth and rust proof.

Technology Standards:

  • Accuracy : conformity with international III scale standard (GB/T11883-2002).
  • Battery Type: Fully sealed lead-acid battery, 6V/4Ah
  • Security Overload: 150% FS
  • Broken Overload: 300% FS
  • Temperature: -10° C ~ 50° C
  • Display: 5d 30mm (0.5”) high brightness LED
  • Battery of remote controller: 23A 12V x 1 battery
  • Stability of reading: <5.0S
  • Remote control: 10~15m
  • Charger: DC12V / 1000mA
  • Humidity: <90% R.H.
  • Battery Last: 60 Hrs.
DescriptionDownload
Model:    UPW-5000 series
  • Capacity (kg):    500
  • Graduation (kg):  0.1
  • Operation Temp:  -10 ~ 50°C
  • Sensor Type:   STC
  • Net Weigh (kg):  3 kg
  • Body Length  (mm):  265
Model:    UPW-5000 series
  • Capacity (kg):   1000
  • Graduation (kg):   0.1
  • Operation Temp:  -10 ~ 50°C
  • Sensor Type:   STC
  • Net Weigh (kg):   7 kg
  • Body Length  (mm):  265
Model:    UPW-5000 series
  • Capacity (kg):   1500
  • Graduation (kg):   0.1
  • Operation Temp:  -10 ~ 50°C
  • Sensor Type:   STC
  • Net Weigh (kg):   7 kg
  • Body Length  (mm):  265
Model:    UPW-5000 series
  • Capacity (kg):   2000
  • Graduation (kg): 0.5
  • Operation Temp:  -10 ~ 50°C
  • Sensor Type:   STC
  • Net Weigh (kg):   7 kg
  • Body Length  (mm):  265
Model:    UPW-5000 series
  • Capacity (kg):   3000
  • Graduation (kg): 0.5
  • Operation Temp:  -10 ~ 50°C
  • Sensor Type:   STC
  • Net Weigh (kg):   7 kg
  • Body Length  (mm):  340
Model:    UPW-5000 series
  • Capacity (kg):   5000
  • Graduation (kg): 1
  • Operation Temp:  -10 ~ 50°C
  • Sensor Type:   STC
  • Net Weigh (kg):   14 kg
  • Body Length  (mm):  -
Model:    UPW-5000 series
  • Capacity (kg):   10000
  • Graduation (kg): 2
  • Operation Temp:  -10 ~ 50°C
  • Sensor Type:   STC
  • Net Weigh (kg):   34 kg
  • Body Length  (mm):  -

Download PDF:
