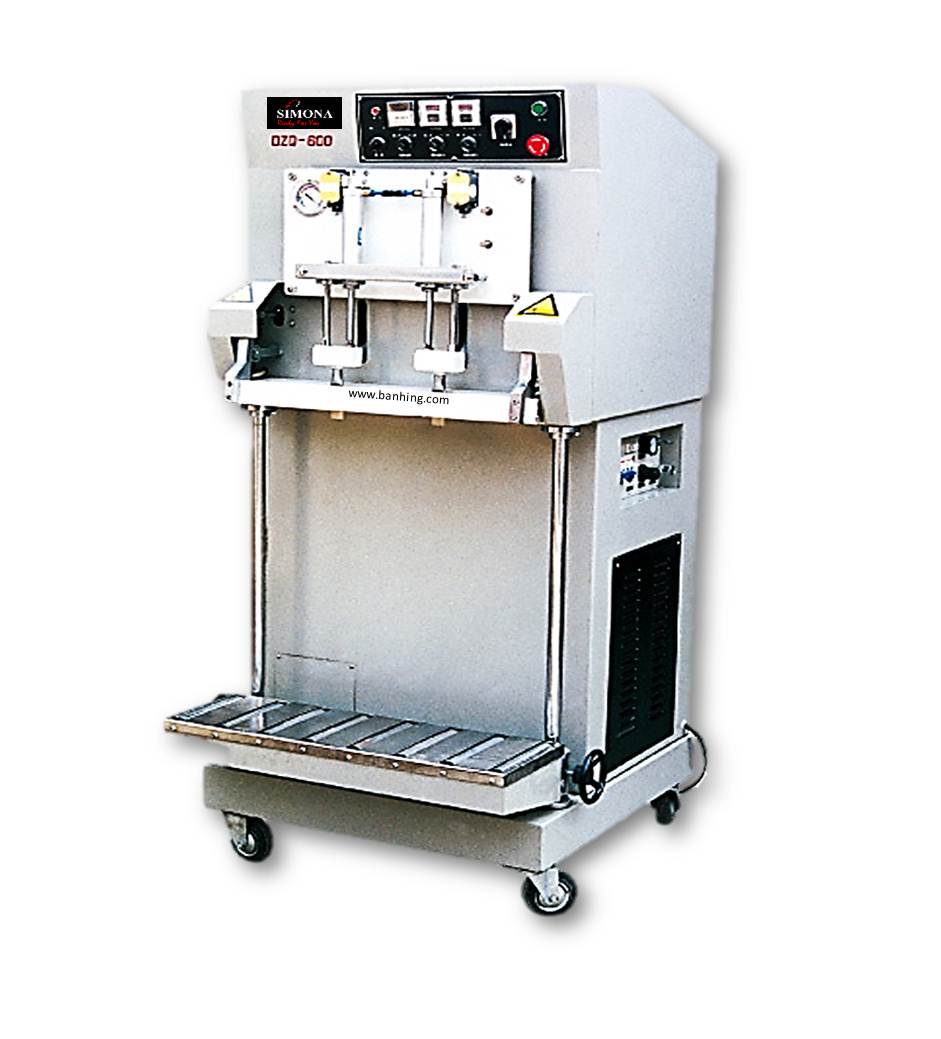

(DZQ600L) Multi-Functional Gas Extracting Vacuum Packing Machine

DZQ-600L non chamber multi-functional gas extracting packaging machine not only can achieve the process of sealing, but also vacuum extraction or inert gas flushing after vacuum cycle.

Due to chamber less design with double gas nozzles, its application is not limited by the size of vacuum chamber. The machine is ideal for the applications that have low demand on vacuum degree but high demand on the purity of inert gases.

Model DZQ -600L /S with double heating system is ideal for sealing relatively thick plastic bag and compound bag.

Special sealing lengths 700mm, 800mm and 1000 mm are available.

For the powder smaller than 100 meshes, the machine should be equipped with Helix Subside Filter for collecting powder in order to protect vacuum pump.

Model:     DZQ-600L(/S)
  • Voltage:     AC 380V/50Hz or 220V/50Hz
  • Sealing Power:     600W (1000W)
  • Motor Power:     750W
  • Air Compressor:     1100W
  • Seal Length:     600mm (700mm 800mm 900mm 1000mm)
  • Seal Width:    10mm
  • Distance from Sealing Center to Conveyor:     1250mm
  • Pump Capacity:    20m³/h
  • Film Thickness (Single Layer):    ≤0.18mm
  • External Dimensions (L*W*H):    945 x 900 x 1900mm
  • Net Weight:    255kg
