(SY series) Herbal Grinding Machine

The construction of multi-function disintegrator is esthetic, have not much noise. This machine can disintegrate into very small powder from 50~300micron. Can't make the products burned off, have no dust while working, have no vibration, can disintegrate drugs, chemic materialism biological materials, food. Disintegration process is rather quick, near 2 minutes and you will get the powder, use it for different products can't mix different taste and different colors. It can be used un drug stores investigation institutes, and family home for small amount of materials.

DescriptionDownload

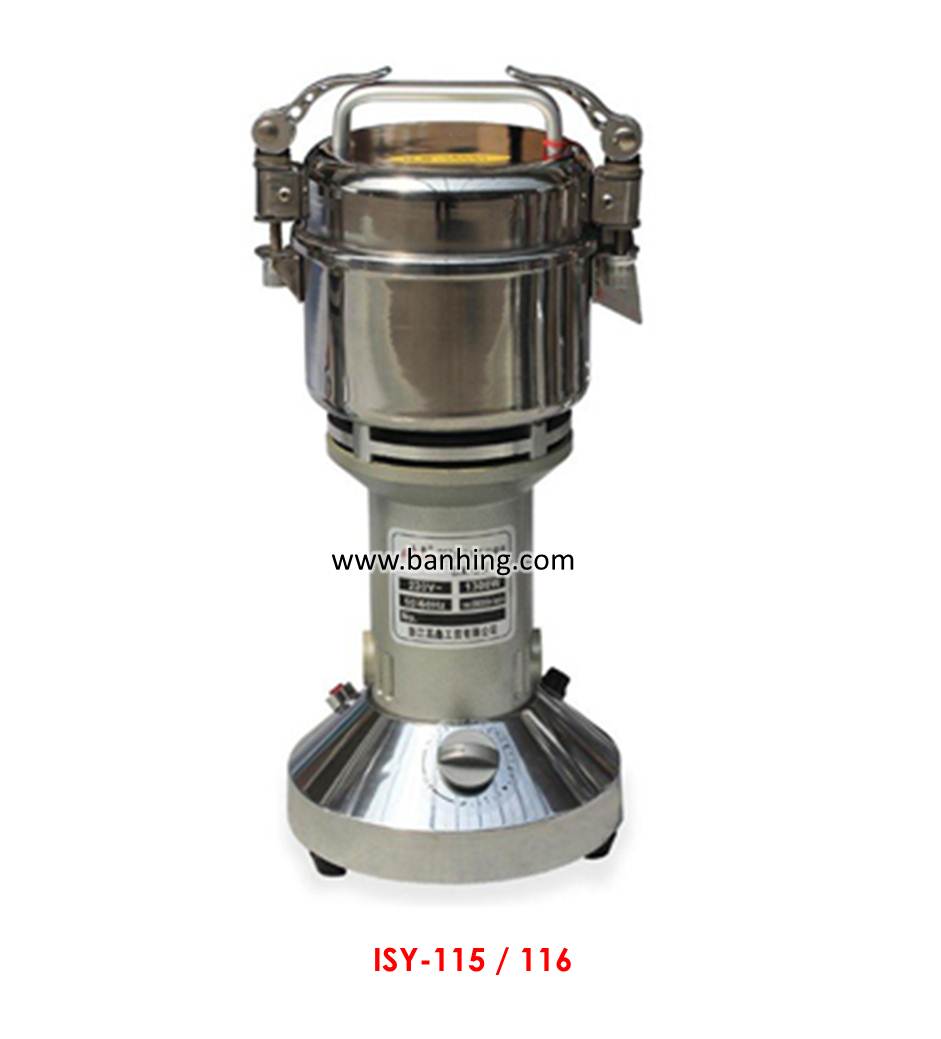

Model:    ISY-115
  • Power:    0.65kw
  • Voltage:   240v/ 50Hz
  • Rotate Speed:    25000rpm
  • Capacity:     100g
  • Dimension (mm):    140(L) x 140(W) x 330(H)
  • Weight:    3.2kg
Model:   ISY-116
  • Power:   1.2kw
  • Voltage:   240v/ 50Hz
  • Rotate Speed:   25000rpm
  • Capacity:     200g
  • Dimension (mm):   175(L) x 175(W) x 390(H)
  • Weight:  4.2kg
Model: SY-04
  • Power: 1.2kw
  • Voltage:   240v/ 50Hz
  • Rotate Speed:   25000rpm
  • Capacity:   200g
  • Dimension (mm):   190(L) x 190(W) x 330(H)
  • Weight: 6kg
Model: SY-07
  • Power:    1.5kw
  • Voltage:   240v/ 50Hz
  • Rotate Speed:   25000rpm
  • Capacity:   350g
  • Dimension (mm): 220(L) x 220(W) x 400(H)
  • Weight: 5.3kg
Model: SY-10
  • Power:    1.8kw
  • Voltage:   240v/ 50Hz
  • Rotate Speed:   25000rpm
  • Capacity:   500g
  • Dimension:      220(L) x 220(W) x 400(H)
  • Weight: 9kg
Model: SY-25
  • Power:    3.5kw
  • Voltage:   240v/ 50Hz
  • Rotate Speed:   25000rpm
  • Capacity:   1000g
  • Dimension:      240(L) x 240(W) x 430(H)
  • Weight: 11kg

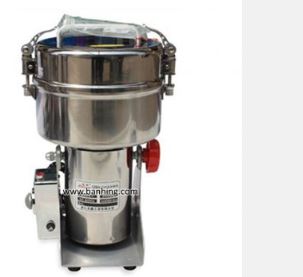

Model: SY-50
  • Power:    2.2kw
  • Voltage:   240v/ 50Hz
  • Rotate Speed:   25000rpm
  • Capacity:   2000g
  • Dimension:      555(L) x 305(W) x 445(H)
  • Weight: 22.2kg
