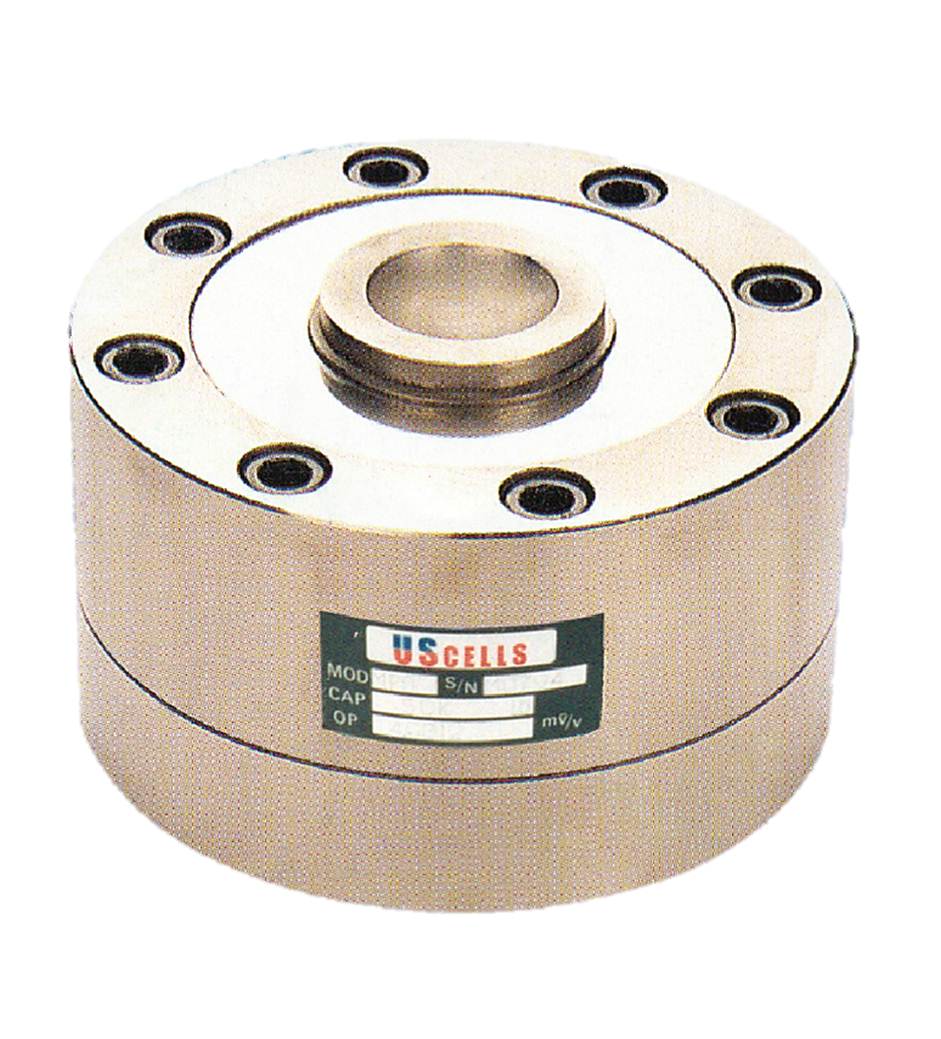

MPD Low Profile Disk Load Cells
DescriptionDownload
Model: MPD
- Capacity: 25k, 50k, 100klb
- Sensitivity: 4mV/V ± 0.01%
- Zero Balance: < 2% of Full Scale
- Creep (1 hour): < 0.03% of Full Scale
- Non-Linearity: < 0.03% of Full Scale
- Hysteresis: < 0.03% of Full Scale
- Repeatability: < 0.02% of Full Scale
- Temperature Effect on output: < 20 PPM/°C of Applied Load
- Temperature Effect on zero: < 20 PPM/°C of Applied Load
- Operating Temperature Range: -20°C to 60°C
- Compensated Temperature Range: -10°C to 50°C
- Safe Overload: 1.5 x Capacity
- Input Impedance: 400 ± 10 Ohms
- Output Impedance: 350 ± 5 Ohms
- Insulation Resistant: > 5,000 Meg- Ohms
- Recommended Excitation: 10 V DC/AC
- Maximum Excitation: 15 V DC/AC
- Cable Length: 20 m
- Enviromental Protection: IP 67
