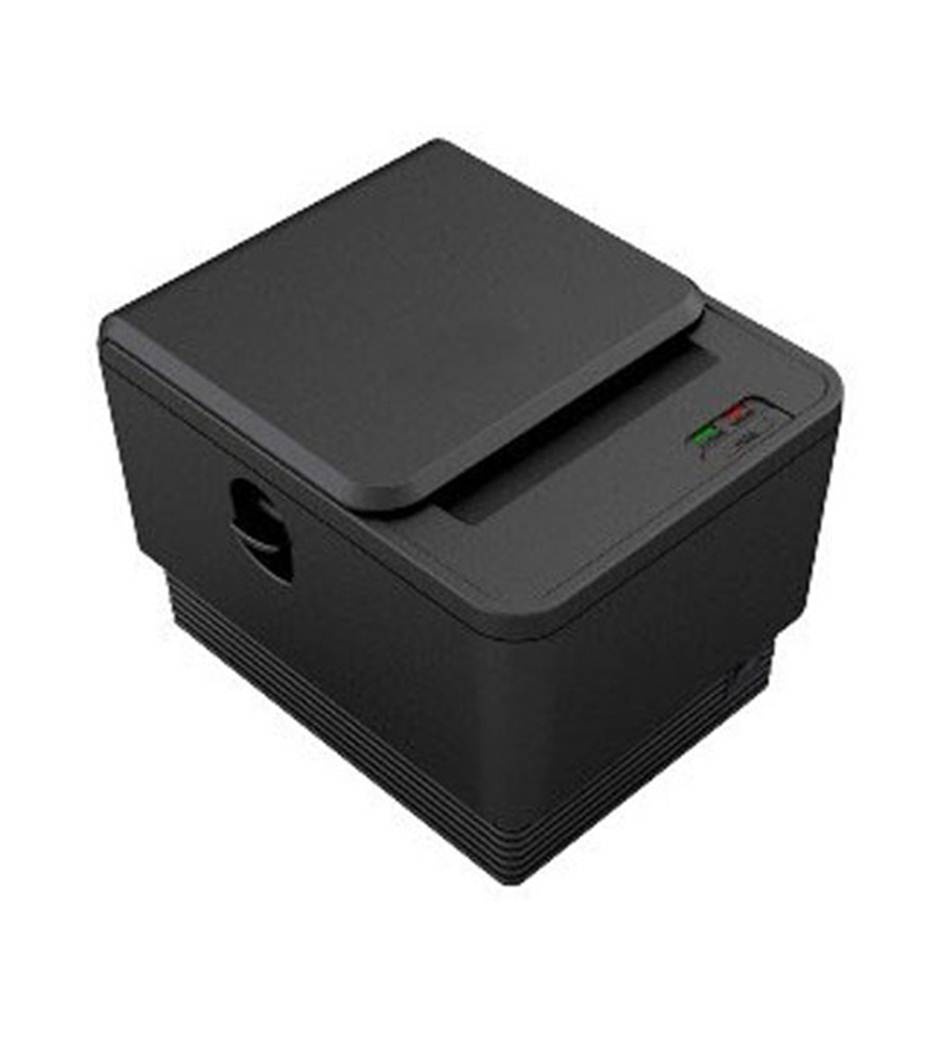

VIOS A7 Thermal Receipt Printer

A7 Model is a jam-free printer designed with user convenience at the forefront. Its body slots into any shop décor well, and with its compact features and remarkable reliability, this speedy printer is incredible value and suitable for any business purpose.

Features :~

  • Paper jam-free printer
  • High performance CPU
  • Specially designed font provides superior readability
  • High resolution to 203dpi
  • Supports various interfaces (RS232C / USB)
  • Easy paper loading
  • Built-in buzzer
  • Additional melody/voice upgrade
  • Windows & OPOS Drivers
  • Compatible with EPSON or STAR cash drawers



DescriptionDownload
Model:      A7
  • Printing Method:       3" Jam-free direct thermal
  • Printing Speed:        170 mm/sec max
  • Dot Density (DPI):       203.2
  • Dot Pitch (mm):      0.125*0.125
  • Effective Printing Width:      72mm, 576dots
  • Printing Direction:      Unidirectional with friction feed
  • Character/Line:       Font A(12*24) 42 columns                                                                                            Font B (10*20) 58 columns
  • Paper:       Type: Thermal paper                                                                                                   Width:79.5mm (±0.5mm)                                                                                             Thickness:0.07mm                                                                                                         Roll Diameter:83 Ømm
  • Reliability:       TPH Life: 100km                                                                                                             MCBF:  60,000,000 lines
  • Character/Set:         Alphanumeric character:  95                                                                                        Extended graphic:  128 x 35 page
  • Barcode:       EAN-8, EAN-13, CODE39, CODE93, CODE128, ITF, UPC-A, UPC-E, CODABAR
  • Emulation:        ESC/POS command compatible
  • Driver:       Windows / OPOS
  • Interface:       Serial / USB
  • Power:       DC 24V, 2.5A
  • Data Buffer:        4Kbyte
  • Cutting:       Life: 700,000 cuts                                                                                                         Cutting method: Partial cut
  • Temperature:       Operating: 0 ~ 40℃                                                                                                       Storage: -20 ~ 60℃
  • Qualification:         CE, FCC, MIC
