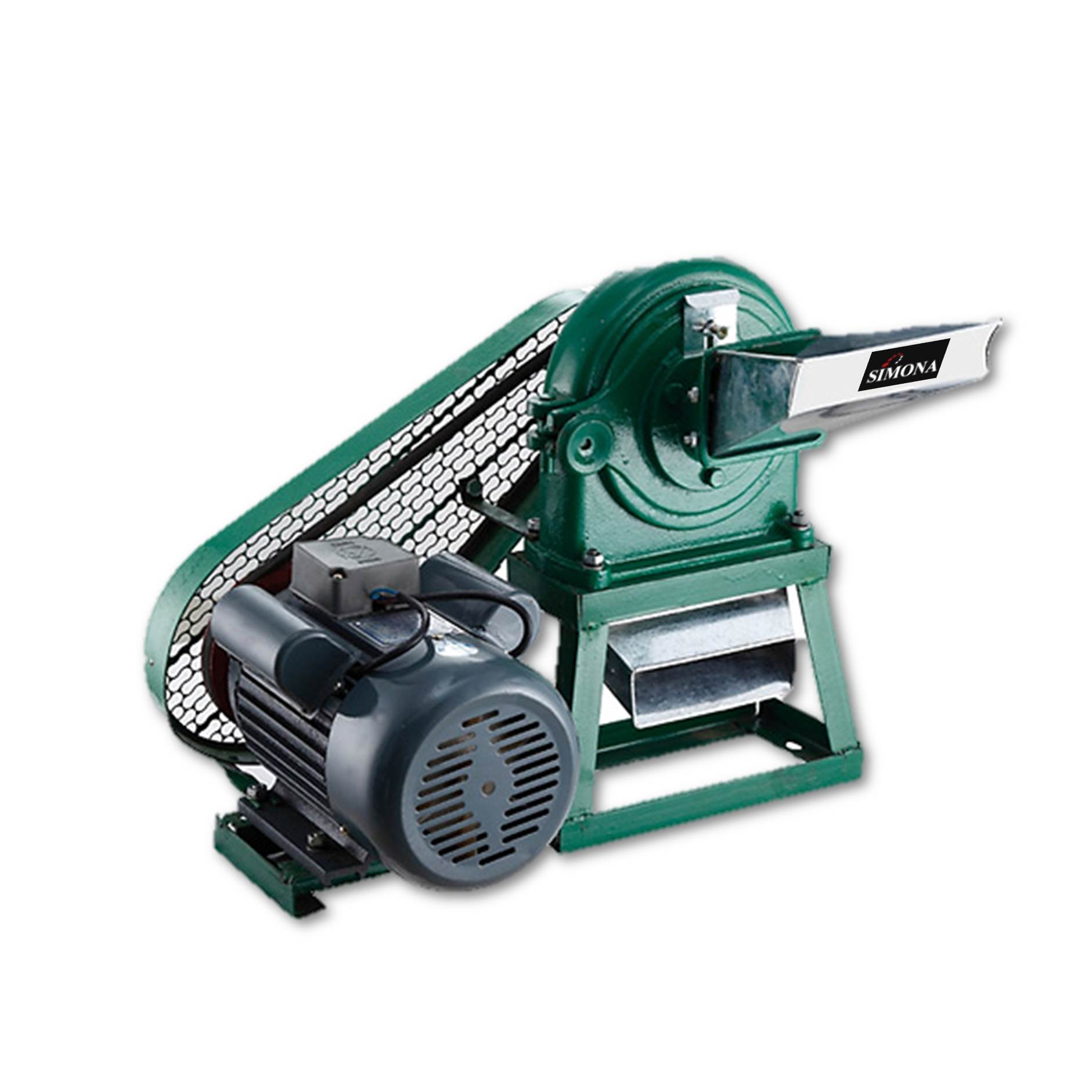

(SY150) Disk Mill Machine

Application :~

The mills are especially ideal for the even grinding of cereals and feeding stuffs such as maize, soya bean, sorghum, sun-dried sweet potato chips, oil cakes, rice and chili will rapidly take and reduce them all to a finer degree in one operation, with no residue left in the machine. Apart from the above mentioned application, they can also be used for the rapid beating of paper pulp, reduction of chemical materials and wet soya bean, etc. Efficiency is good and they are always free from being clogged.

Features :~

  • Having high efficiency
  • Stable, safe and reliable operation
  • All toad finer degree
  • Less power
  • High output
  • Install simple, operate easily
DescriptionDownload
Model:  SY-150
  • Power:  1.1kw
  • Voltage:  220v
  • Frequency:  50Hz
  • Spindle speed:  6200-6500r / min
  • Productivity:  20-25kg / h
  • Waterproof grade:  IP * 1
  • Weight:  35.8kg
  • Dimensions:  590 x 270 x 280mm
